LAMILUX Glass Skylight FE 3°*
Angled elegance
*Certified for the United States according to AAMA/WDMA/CSA 101/IS2/A440-17.
Advantages at a glance
Glass Skylight FE 3°: aluminium profile
Quality
- Optimal thermal insulation thanks to overall structure free of thermal bridges
- Intelligent controls for natural ventilation and sun protection blinds
- Optimised soundproofing and minimised rain noise
- Tightness against driving rain as per DIN EN 1027 = E (1950)
- Permeability to air in line with DIN EN 1026 = Class 4
- Resistance against wind load in line with DIN EN 12211 = C5
- Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE 3°
Design
- Uniform appearance
- Aesthetic, classical and elegant design language

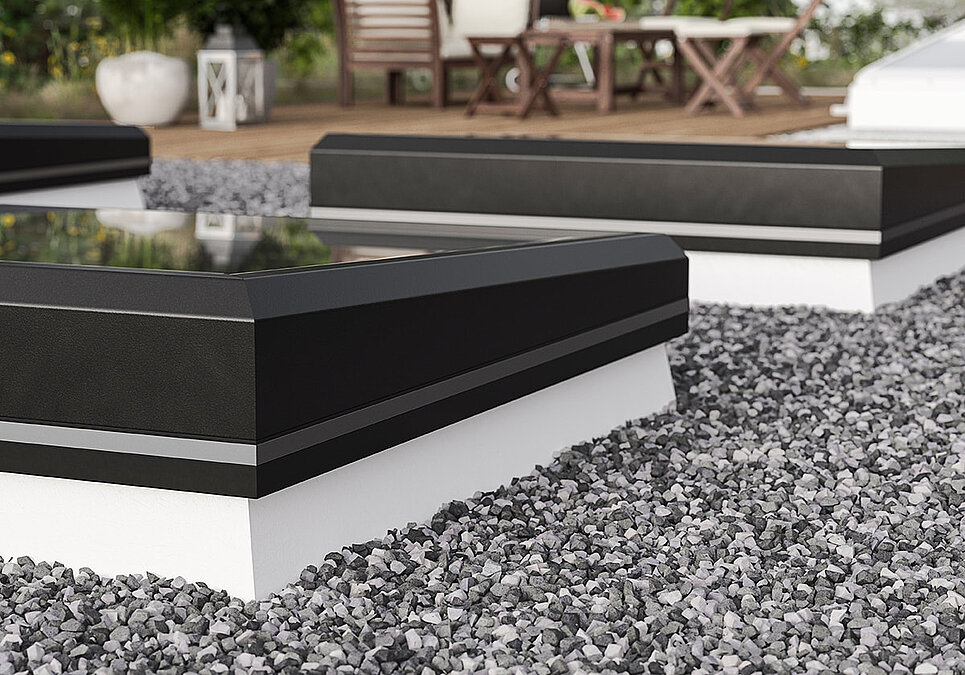

- Stepless transition between frame profile and glazing

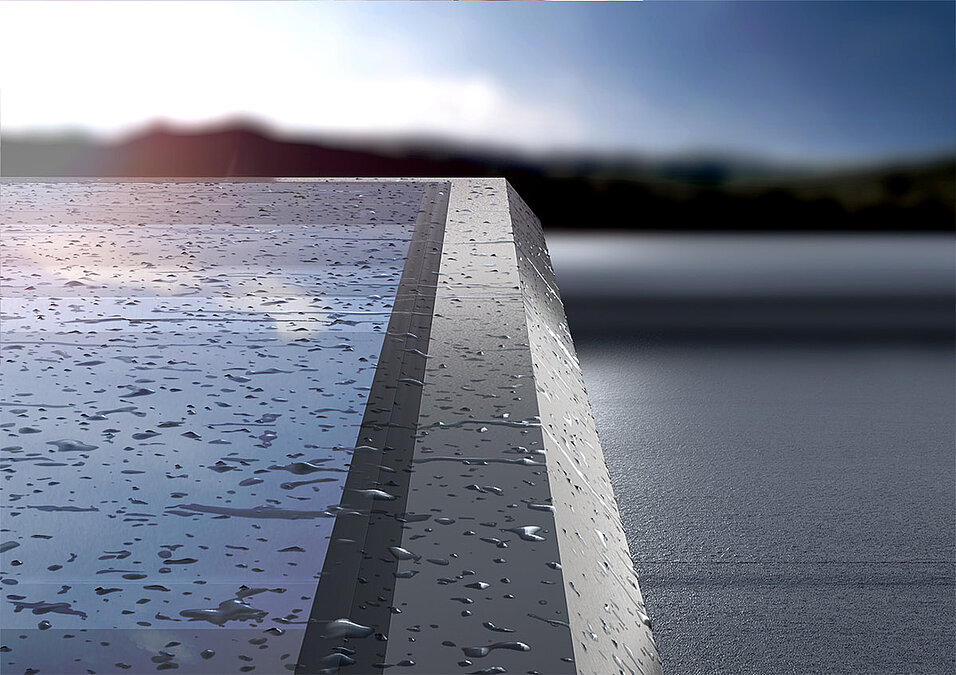

- Unobstructed drainage of water and dirt thanks to the element's 3° inclination
- Award winning design
- Wide variety of colours based on RAL system (surrounding profile)
Safety
- Approved fall-through protection as per DIN 18008-6
- Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
- High hail resistance thanks to TSG outer pane as a standard feature
Use
- Our LAMILUX Glass Skylight FE 3° is BIMready – Download at bimobjects.com
- Fully pre-assembled delivery of the element to the construction site
- Simple installation
- Efficient maintenance
Product configurator

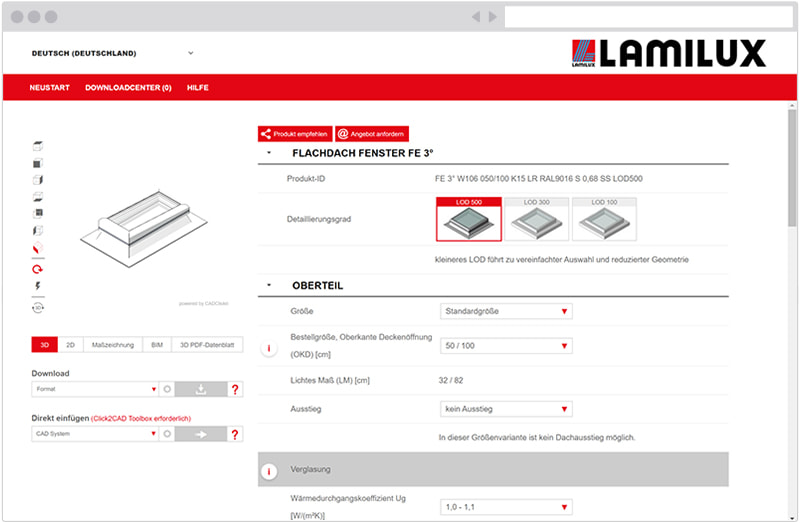

Create an individual product variant, guided by a dynamic dialog with 3D preview in real time. Then share, request with one click or download BIM objects, 2D and 3D CAD models, images, dimensional drawings or data sheets in the desired file format.
Highlight for all planners
With BIM or without – the PDF data sheet with all technical properties including active 3D model, dimensional drawing and link back to configuration is the ideal all-in-one document of your desired product variant. Generate it yourself now 24/7.
The variants

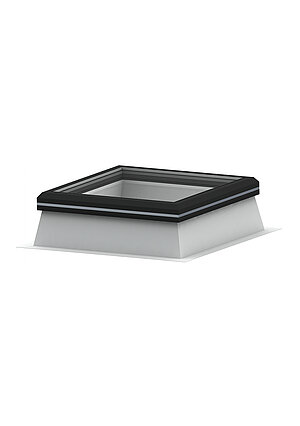

Glass Skylight FE 3°: aluminium profile
Glazing types
Our range of glazing takes into account different aspects on an individual basis
- Incidence of daylight – Transparency and light diffusion
- Energy efficiency/thermal insulation
- Sun protection/protection against heat
- Sound insulation
- Self-cleaning
- Permanently fall-through proof
Heat protection insulation glazing
W102 Double TSG
- Ug-value: approx. 1.1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 80%
- Energy transmission: approx. 62%
Heat protection insulation glazing
110 Triple TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy transmission: approx. 51 %
Heat protection insulation glazing with matt, light-coloured film (MHF)
W103 Double TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy transmission: approx. 59 %
Heat protection insulation glazing with matt, light-coloured film (MHF)
W303 Triple TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 50 %
Solar protection insulation glazing
S109 Double 60/30 TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy transmission: approx. 30 %
Solar protection insulation glazing
S117 Triple 60/30 TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy transmission: approx. 28 %
Solar protection insulation glazing with matt, light-coloured film (MHF)
S101 Double 50/25 TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 27 %
Solar protection insulation glazing with matt, light-coloured film (MHF)
S121 Triple 50/25 TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 45 %
- Energy transmission: approx. 25 %
Accessories
Glass Skylight FE 3°: aluminium profile
Ventilation units
The following models are available, depending on the size and weight of the glass
Product extensions

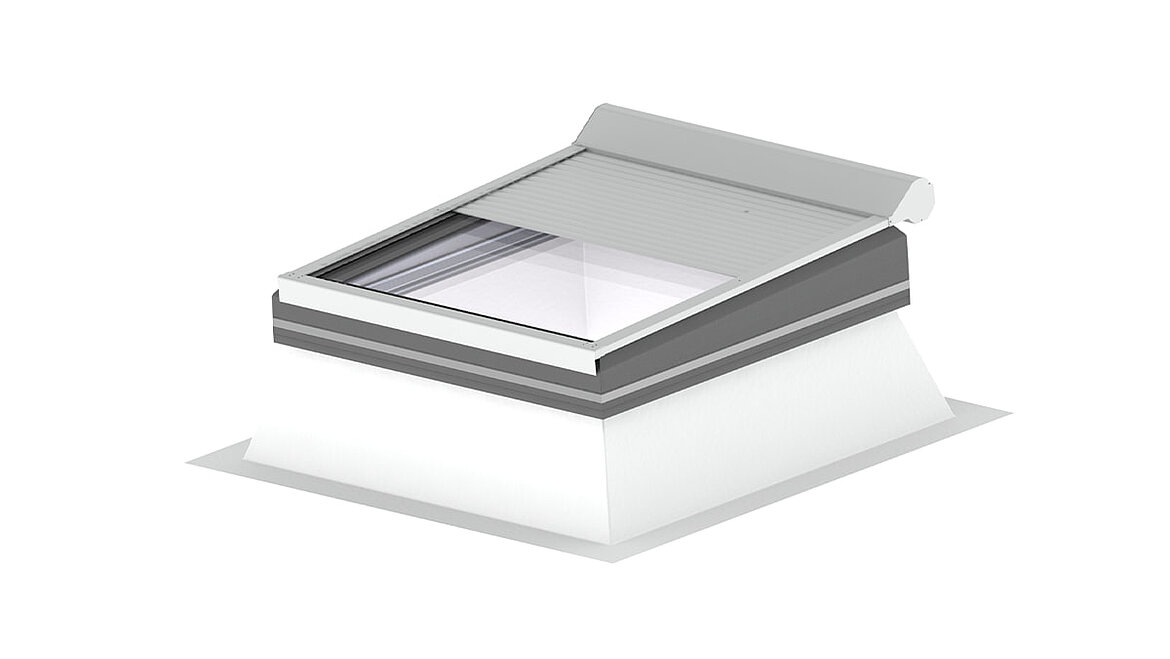

Sun protection
- Inside with safety tie bars
- Outside as blind
- Outside, rigid (sun protection with deciduous tree effect)

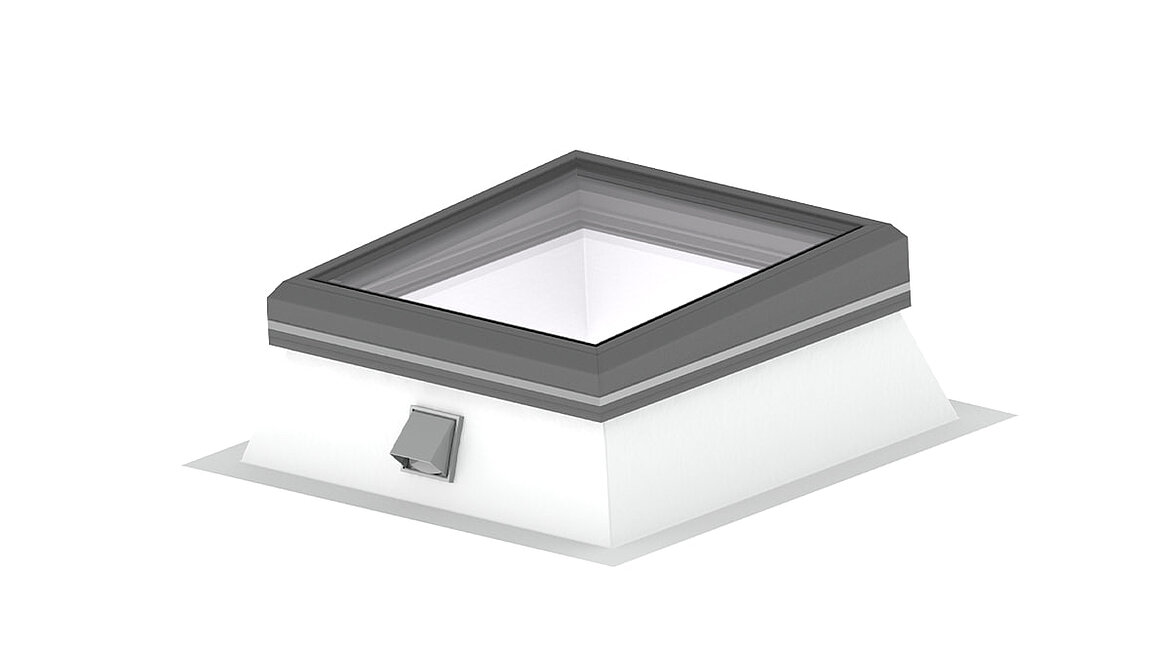

Small space ventilation unit
- Integrated in upstands with a height of 30, 40, 50 and 70 cm to provide ventilation
- Integrated weather protection cover and insect protection
- Air flow volume: 180 m³/h
- Protection class: IP34

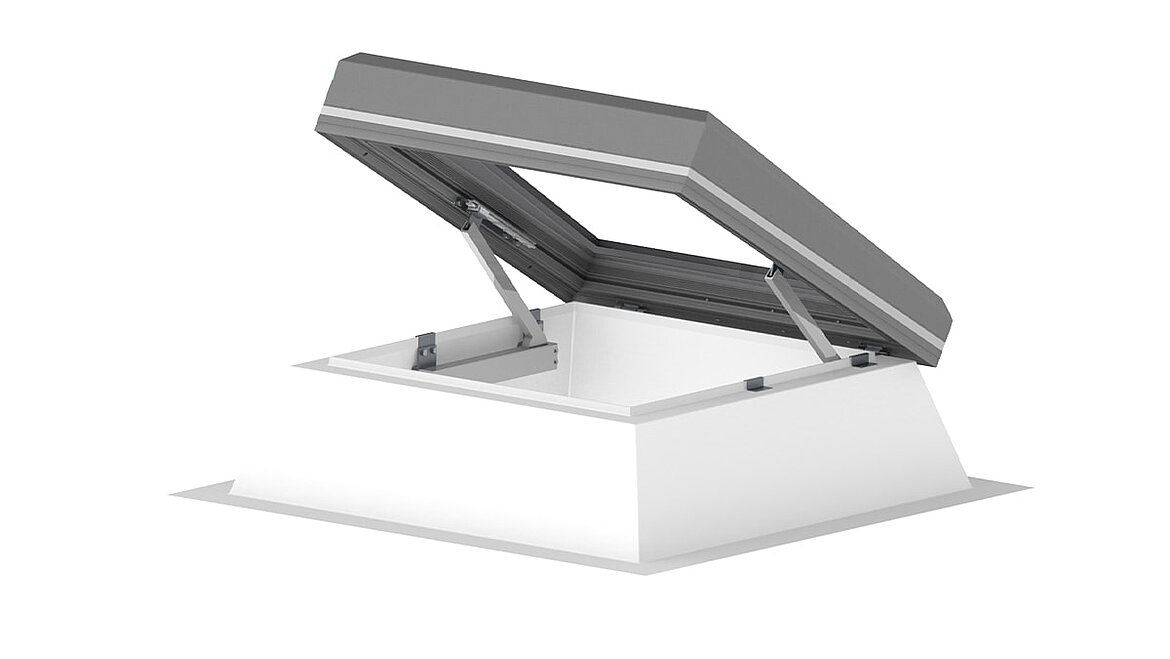

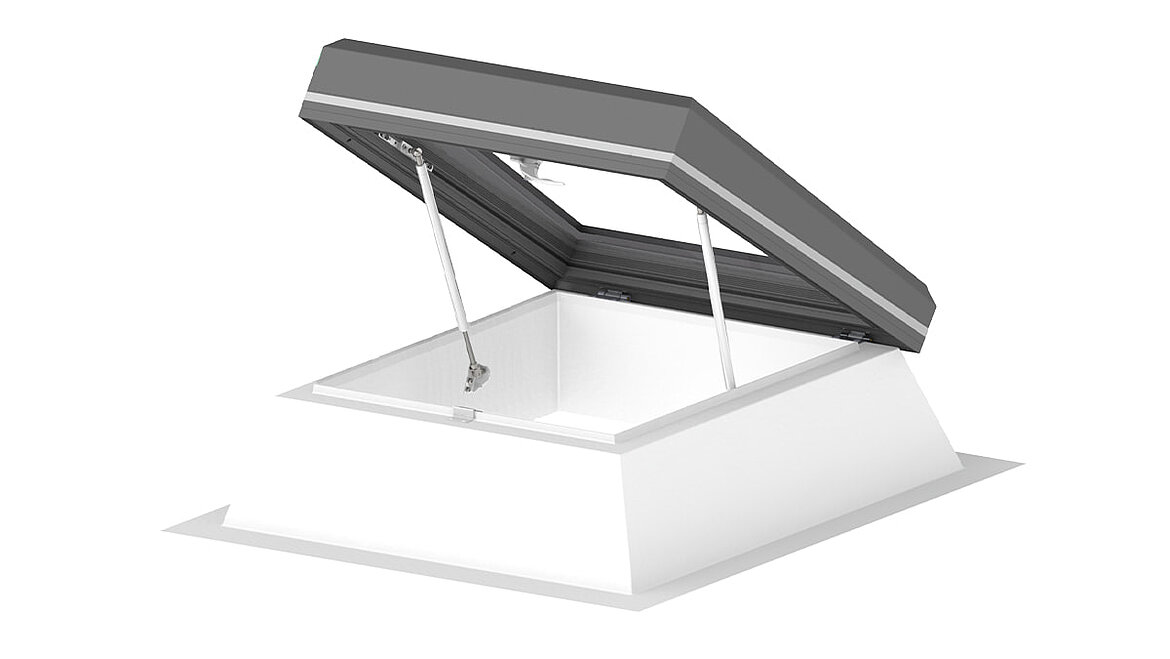

Roof exit hatch with manual opening
- Easy opening with gas pressure springs
- For double glazing up to a size of 120 cm x 120 cm
- For triple glazing up to a size of 100 cm x 100 cm
Roof exit hatch with electric opening
- Convenient opening with electric motor
- For double glazing up to a size of 120 cm x 150 cm
- For triple glazing up to a size of 120 cm x 120 cm
Wind and rain sensors
- For automated opening and closing of the Glass Skylight in the event of wind and rain
- Operated as a group or individually

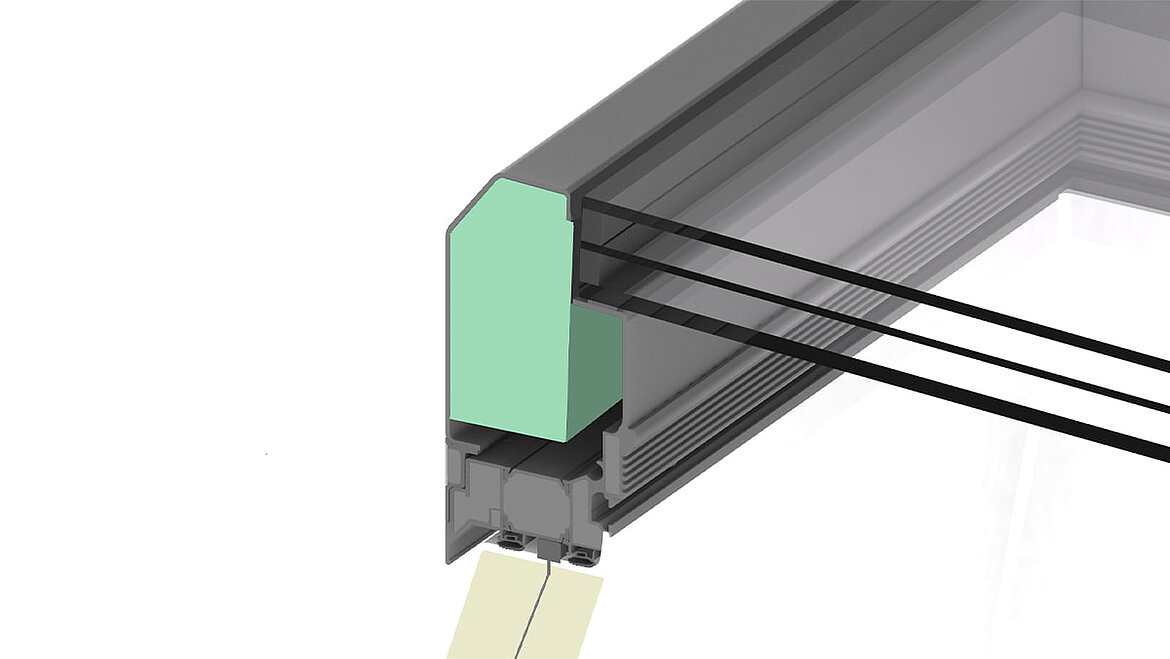

REED contact
- Magnet switch integrated into the frame profile for a contactless switching operation
- Indication of the opening position (closed/open) of the daylight element
- Option to connect to an alarm system
Technical details
Glass Skylight FE 3°: aluminium profile

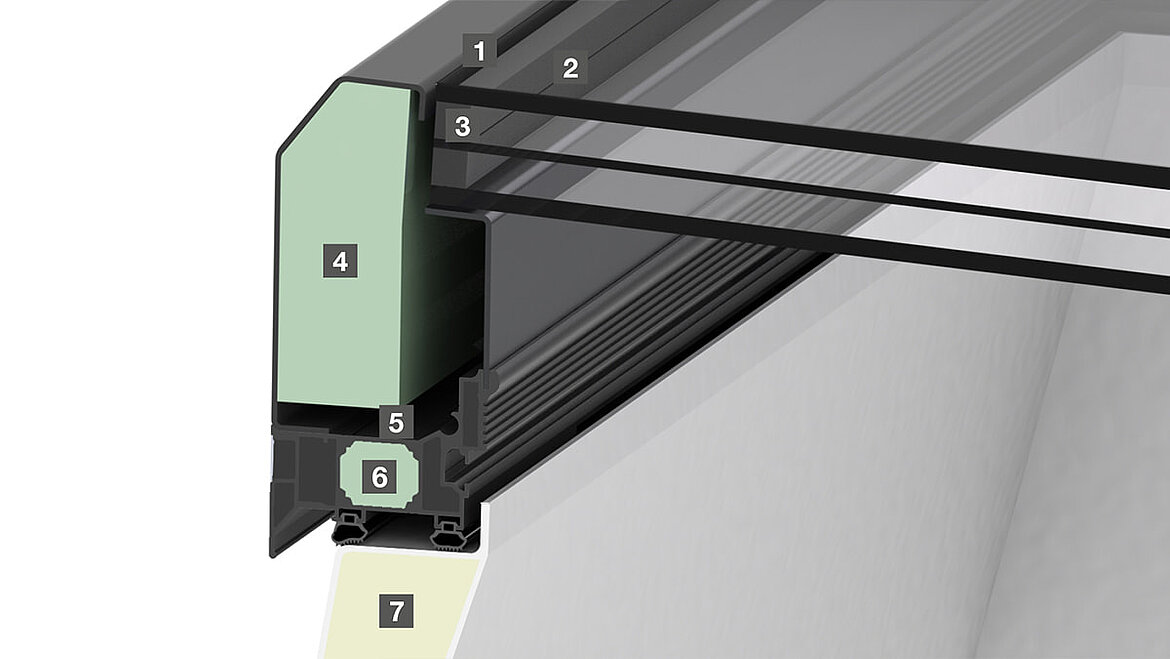

Design details
1 - Structural glazing design
2 - Flat drainage surface
3 - "Warm edge" (spacers between the panes, made of materials with low thermal conductivity), as a standard feature
4 - Integration of all drives and components in the profile frame
5 - TAD – Thermo Active Design: Kink-free isothermal curve in the profile system
6 - Thermally optimised insulation core
7 - Heat-insulated upstand made of glass-fibre reinforced composite: Manufactured without joints (optional) and with a continuous insulation core made of PU foam, 60 mm thick
GRP upstand
Stability and heat insulation in many models
The upstand forms the base for the construction. It provides a thermally optimum connection to the building structure. Manufactured by LAMILUX, using fibre-reinforced composite, our upstands are CFC-free, solid white in colour and thermally insulated with polyurethane hard foam. They include weatherproof sealing and are classified as combustible material with no flaming droplets. LAMILUX upstands have a closed box section, which makes them very stable and warp-resistant. Different metal inserts can be directly laminated into the structure. Secure anchorage for fittings and personal protective equipment (PPE) is guaranteed.
LAMILUX upstands can be manufactured in an extensive range of variations with regard to height and inclination angle. They also offer many options for customised roof mounts. Example: Thermal insulated base flange – variable insulation thicknesses also available on request.
DIN 18234 – Prevention of fire spread on flat roofs
The GRP up stand and the aluminium surrounding frame profile render further safety measures unnecessary on flat roofs. Surface protection in the form of gravel fill is not required.
