LAMILUX Modular Glass Skylight MS78
The best of two worlds
Benefits at a glance
Modular Glass Skylight MS78
Design
- Uniform appearance of vents and fixed elements through native vent integration (NFI)
- Reduced design in the interior area due to vents with invisible, integrated drives
- Sustainable product material cycle through single-origin recycling
Daylight incidence & fresh air supply
- High proportion of glass due to module sizes up to 1.30m x 3.00m
- Full light area due to vents without tensioning frame
- Maximum ventilation area due to unrestricted vent arrangement
Comfort
- Precise installation thanks to V-groove and self-aligning module connection (SAM)
- Optimised construction process thanks to complete installation from the roof side in one stage, including vapour-tight connection
- Simple and secure roof integration thanks to system-specific connection technology
- Direct installation on load-bearing surfaces made of concrete, steel or wood without additional mounting and levelling profiles
Safety
- Maximum safety from the first sealing level onwards thanks to the butt-covering drainage profile (SEP)
- Best quality standards due to high degree of prefabrication
- The overall system offers thermal insulation values significantly above the legal requirements, for lower costs and active energy savings
- Safety thanks to the long service life of the entire system
LAMILUX Modular Glass Skylight MS78
Unique combination of proven LAMILUX skylights with new glass roof innovations
For more than 70 years, we have convinced the market with innovatively sophisticated skylights. In doing so, we are never satisfied with the status quo. We are constantly improving our skylights in order to offer you the most technically advanced solution available on the market. Because we want to impress you beyond the expected level and offer you and your projects more: more functionality, more energy efficiency, more design, more daylight, more fresh air, more safety, more variety, more design freedom.
To achieve this, we not only continuously improve each and every one of our skylights, but also combine the unique advantages of individual skylights and supplement them with new innovations that create the greatest overall benefit for you. Countless successfully implemented projects confirm the unique selling points of our proven skylights of the LAMILUX Glass Skylight FE and the LAMILUX Glass Roof PR60.
Our LAMILUX Glass Skylight FE impresses with short delivery times thanks to lean and automated processes, the best quality standards thanks to a high degree of prefabrication, and simple and secure roof integration thanks to the system's own connection technology. Our LAMILUX Glass Roof PR60 provides your projects with large areas of light through multi-pane glazing, supports your buildings through secure glass roof drainage with two drainage levels and offers high ventilation comfort through variable vent integration. We have bundled these product advantages and added new glass roof innovations. The result is our LAMILUX Modular Glass Skylight MS78, which combines the best of the two proven skylights and in addition inspires with glass roof innovations.

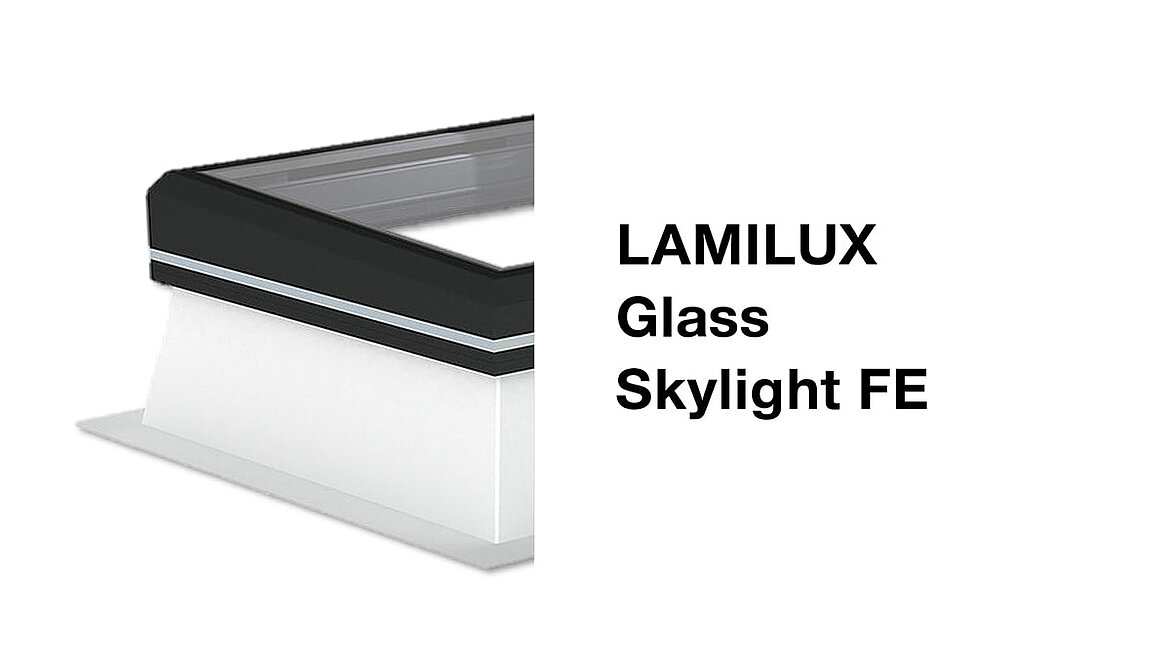

Benefit from the advantages of the Glass Skylight FE
- Short delivery time due to lean and automated processes
- Best quality standards due to high degree of pre-fabrication
- Simple and safe roof integration due to system-specific connection technology
The new LAMILUX Glass Roof offers you a lot of design freedom since it is available in widths of up to 3.00 metres with different lengths. Our new Modular Glass Skylight MS78 can be installed with an inclination of between 5° and 30°, depending on your needs. Together with the level design of the glass surface and the frame profile on the eave side profile, this offers optimum water drainage, avoiding dirty edges and providing cleaner glass surfaces. For you and your projects, the Modular Glass Skylight MS78 allows optimised daylight incidence thanks to the high glass proportion of the modules as well as full light surfaces due to vents without tensioning frames. You can freely plan the number of vents of your customised MS78 construction, even next to each other. Thus the LAMILUX Modular Glass Skylight MS78 creates maximum ventilation area and excellent supply of fresh air and oxygen to your building. Our Modular Glass Skylight MS78 does not only convince in terms of daylight and fresh air, but also sets new design standards at the same time. This is because the native vent integration (NFI) of the MS78 creates an uniform appearance of opening vents as well as fixed elements, both from the inside and the outside. The invisible drives of the vents also provide for a reduced design in the interior. The Modular Glass Skylight MS78 from LAMILUX also scores in terms of safety. It guarantees the highest level of safety from the first sealing level thanks to a butt-covering drainage profile (SEP), the best quality standards thanks to a high degree of prefabrication, as well as durable and easy-care materials and surfaces. In addition, you benefit from short delivery times thanks to lean, automated processes as well as simple and safe roof integration thanks to the system's own connection technology of the Modular Glass Skylight MS78.

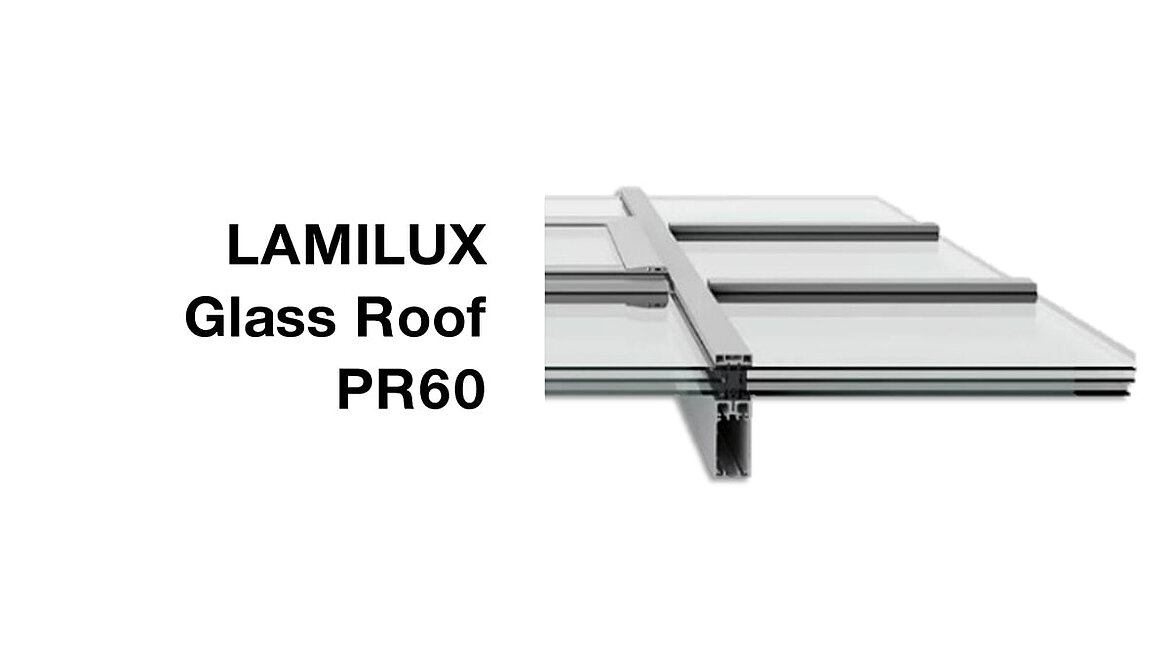

Benefit from the advantages of the Glass Roof PR60
- Large areas of light due to multi-panel glazing
- Proven glass roof drainage with two drainage levels
- High ventilation comfort due to variable vent integration

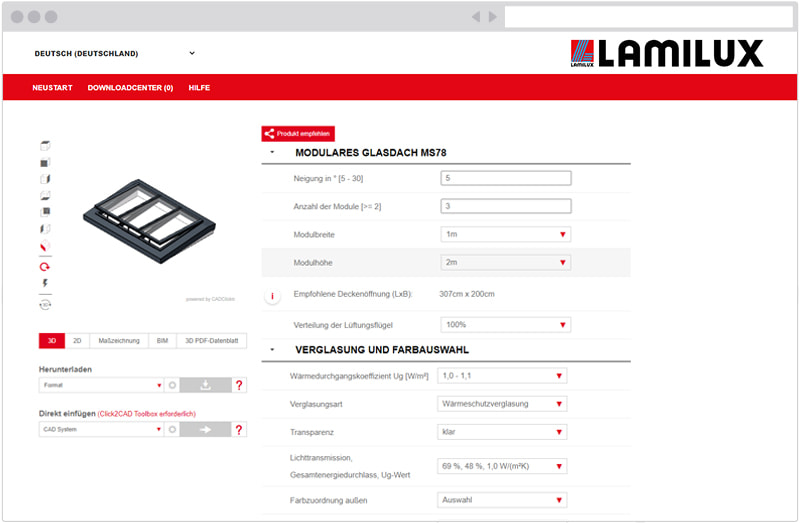

Product configurator
Create an individual product variant, guided by a dynamic dialog with 3D preview in real time. Then share, request with one click or download BIM objects, 2D and 3D CAD models, images, dimensional drawings or data sheets in the desired file format.
Highlight for all planners
With BIM or without – the PDF data sheet with all technical properties including active 3D model, dimensional drawing and link back to configuration is the ideal all-in-one document of your desired product variant. Generate it yourself now 24/7.
The variants
Modular Glass Skylight MS78
Glazing variants
Our range of glazing options takes into account the following individual aspects
- Daylight incidence - transparency and light diffusion
- Energy efficiency / thermal insulation
- Sun protection / thermal insulation
- Sound insulation
- Permanent fall-through protection

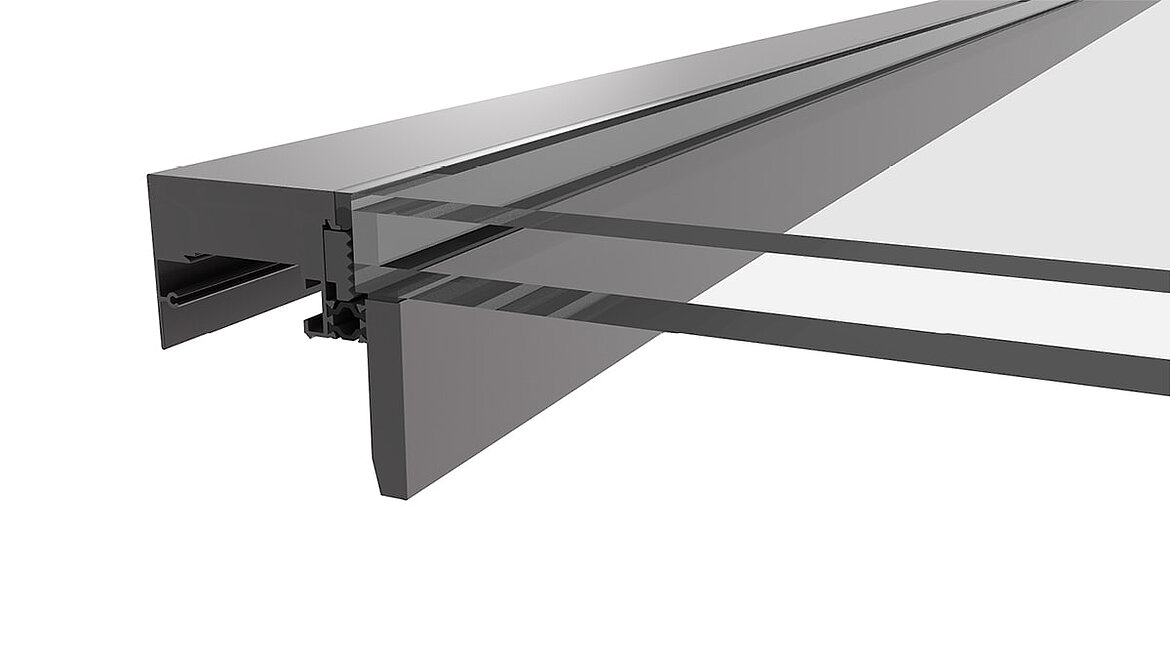

Heat protection insulation glazing
W102 Double TSG*
- Ug-value: approx. 1.1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 80%
- Energy transmission: approx. 62%
Heat protection insulation glazing
110 Triple TSG*
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy transmission: approx. 51 %
Heat protection insulation glazing with matt, light-coloured film (MLF**)
W103 Double TSG*
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy transmission: approx. 59 %
Heat protection insulation glazing with matt, light-coloured film (MLF**)
W303 Triple TSG*
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 50 %

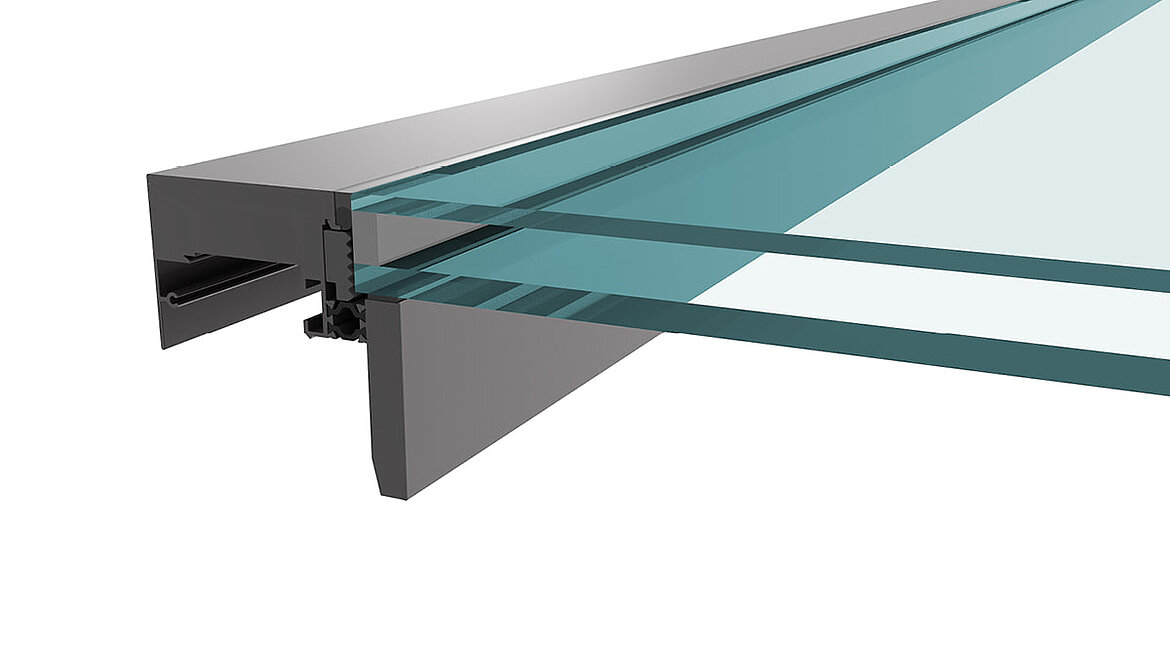

Solar protection insulation glazing
S109 Double 60/30 TSG*
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy transmission: approx. 30 %

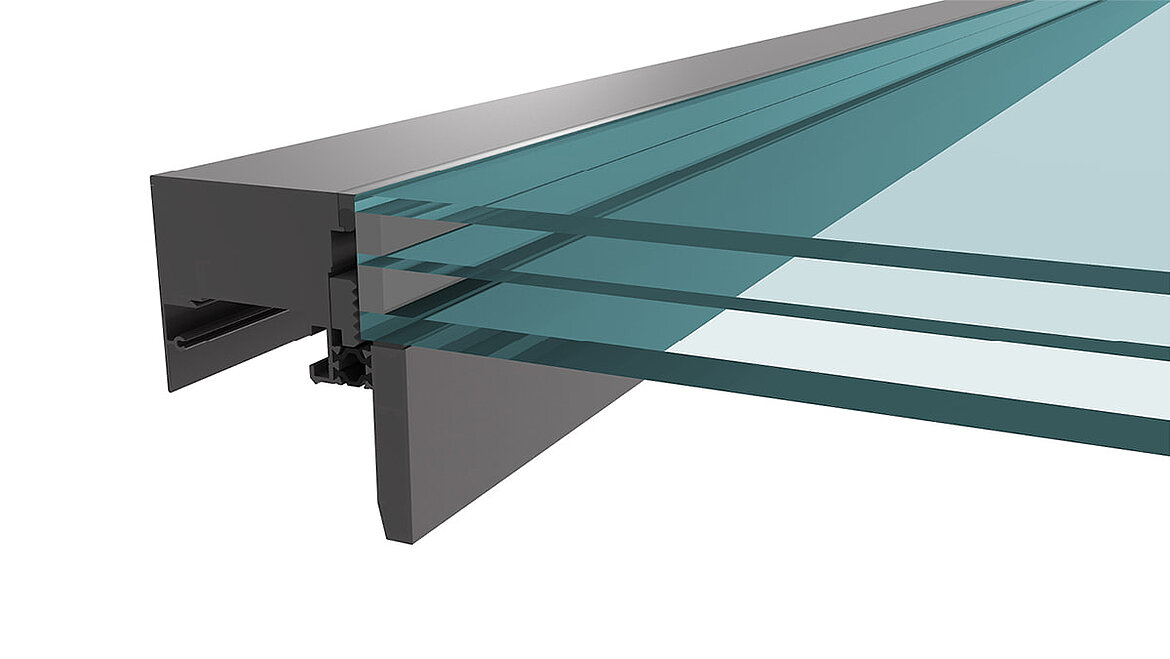

Solar protection insulation glazing
S117 Triple 60/30 TSG*
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy transmission: approx. 28 %
Solar protection insulation glazing with matt, light-coloured film (MLF**)
S101 Double 50/25 TSG*
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 27 %
Solar protection insulation glazing with matt, light-coloured film (MLF**)
S121 Triple 50/25 TSG*
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 45 %
- Energy transmission: approx. 25 %

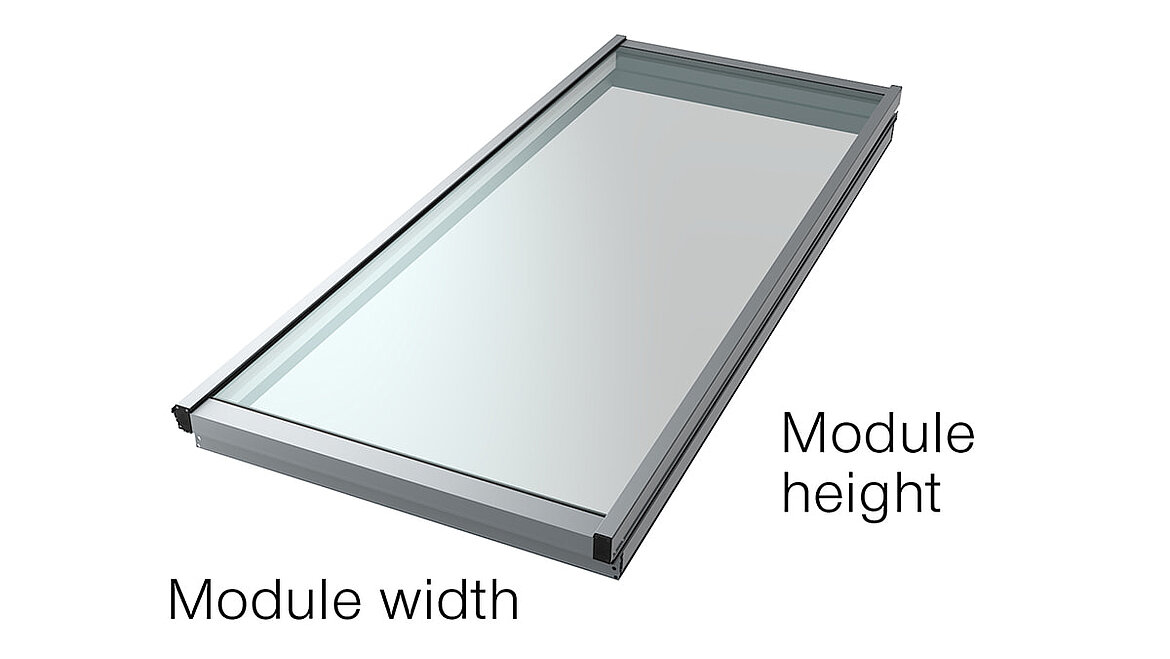

Dimensions
Our LAMILUX Modular Glass Skylight MS78 is designed as a monopitch roof and is available in widths of up to 3.00 metres with variable heights, making it perfect for a wide range of applications. The free configuration in width and height allows you plenty of design freedom to round off your project with an individual glass roof that is customised to your requirements and architectural demands. Our new LAMILUX glass roof can be installed with a glazing inclination of between 5° and 30°, depending on your requirements. Together with the level design of the glass surface and eaves-side frame profile, this offers optimum water drainage, avoiding dirty edges and providing cleaner glass surfaces.
All heights and widths can be combined.
| Module width (in m) | |||||
|---|---|---|---|---|---|
| 0,675 | 0,75 | 0,80 | 0,90 | 1,00 | |
| 1,10 | 1,20 | 1,30 | |||
| Module height (in m) | |||||
|---|---|---|---|---|---|
| 0,70 | 0,90 | 1,10 | 1,30 | 1,50 | |
| 1,70 | 1,90 | 2,00 | 2,10 | 2,30 | |
| 2,40 | 2,50 | 2,70 | 3,00 | ||
Accessories
Modular Glass Skylight MS78

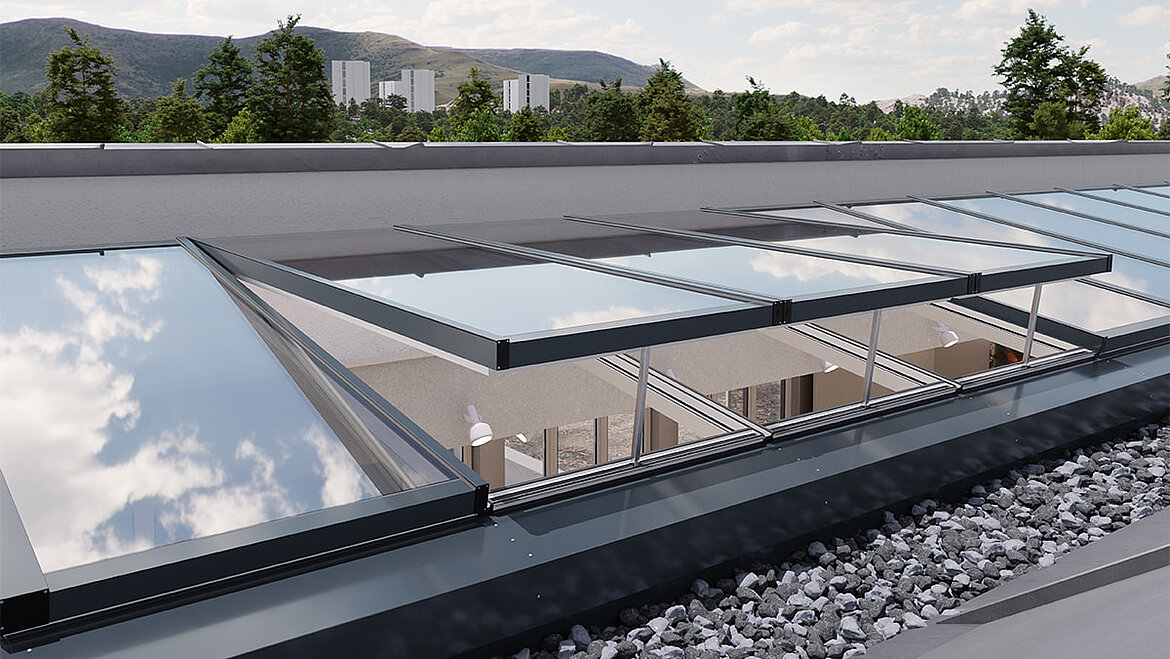

The vents system
Our system offers you maximum ventilation area and full variability. The vents can be lined up directly in any number without the need for fixed panels in between. Nevertheless, they are integrated in a way that they do not require a clamping frame, i.e. they provide the full ventilation and light area of the supporting profile system. This also benefits the uniform appearance: opening vents and fixed panels look the same and form a harmonious overall picture. Even the drives do not disturb this image. They allow an effective opening width of 300 mm or 500mm and are concealed in the profile system. In this combination, the vents system represents an absolute glass roof innovation.

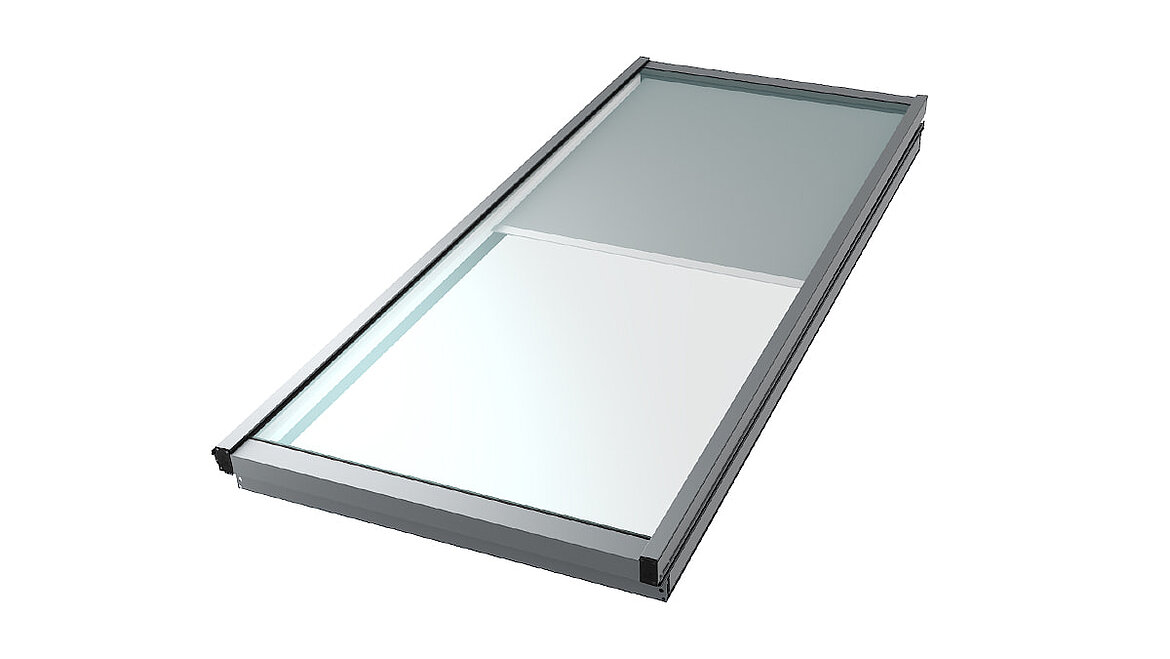

Interior roller blinds
Optionally, our Modular Glass Skylight MS78 can be equipped with an interior roller blind for optimum privacy, sun and glare protection. Our roller blind system for the LAMILUX Modular Glass Skylight MS78 has a filigree and aesthetically appealing design and blends seamlessly into the overall appearance of the glass roof. The sun protection for the Modular Glass Skylight MS78 runs on thin wires and therefore hardly takes up any light area when open. Our interior roller blinds offer a number of advantages when it comes to shading your buildings. Installing a roller blind reduces solar radiation and reduces heat build-up in the interior. At the same time, glare that can be caused by direct sunlight is avoided.
Technical details
Modular Glass Skylight MS78

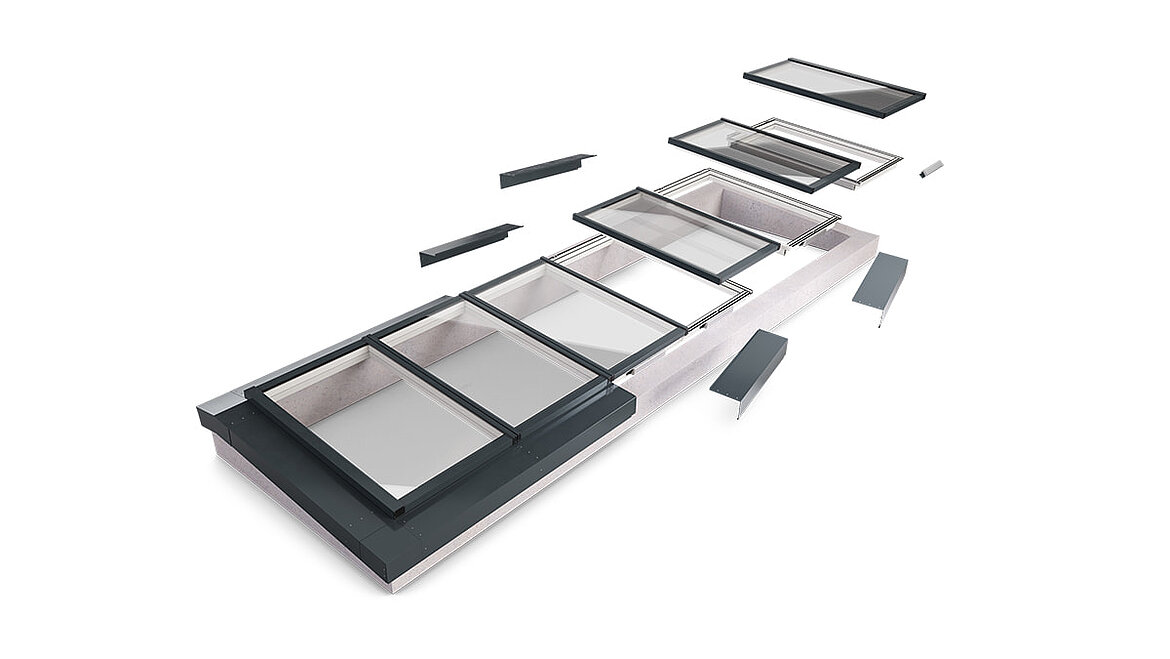

Structure modular system

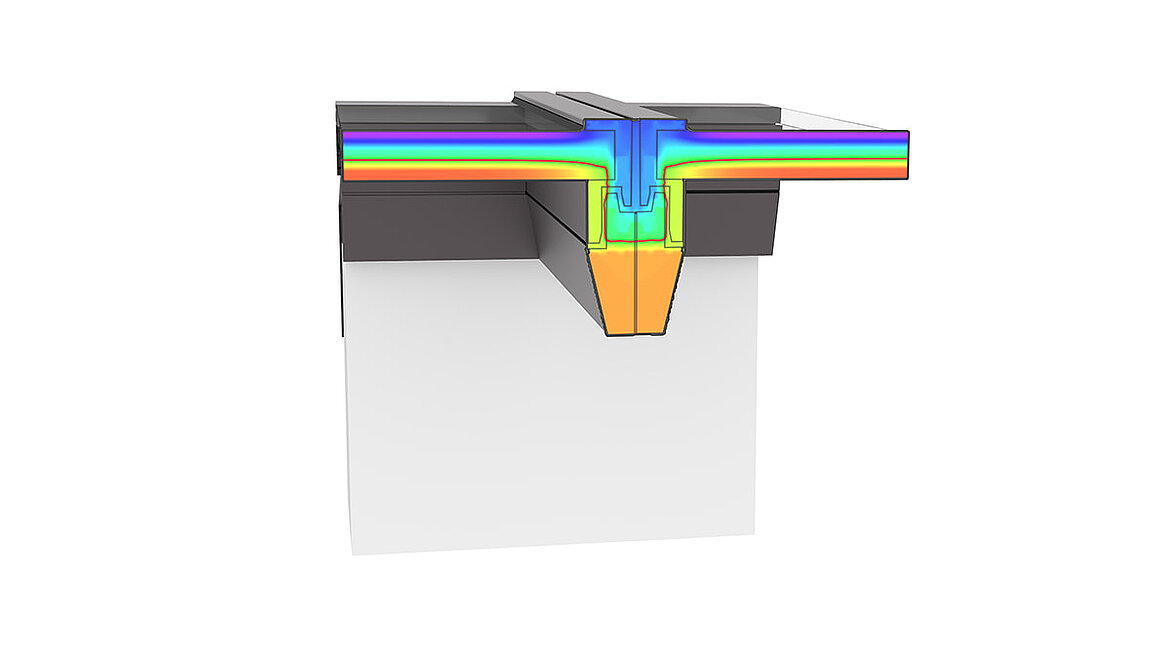

Proven energy efficiency

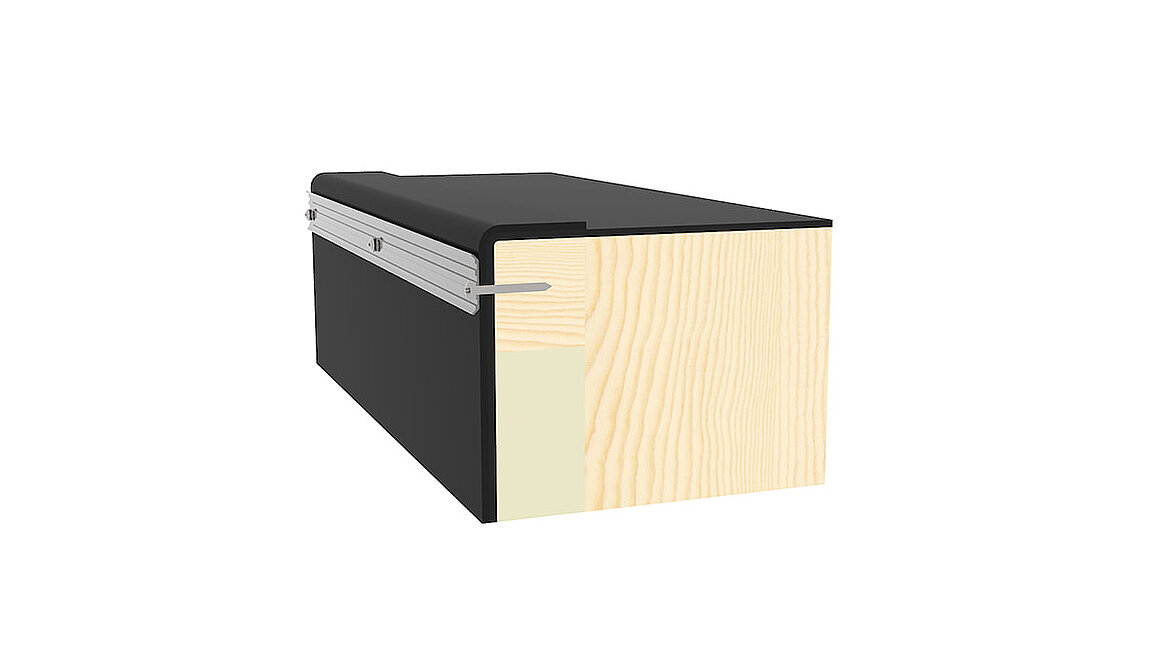

Structural attachment
Our LAMILUX Modular Glass Skylight MS78 can be installed directly onto load-bearing surfaces such as concrete, wood and steel without additional profiles thanks to innovative load converters. Thanks to the special design of our glass roof, no additional profile is required to create a stable and secure connection and compensate for tolerances in the surface. This saves time and costs during installation and makes it more flexible in terms of surface requirements.
