Glass Skylight FE Passivhaus

Certified for active energy management
in passive houses

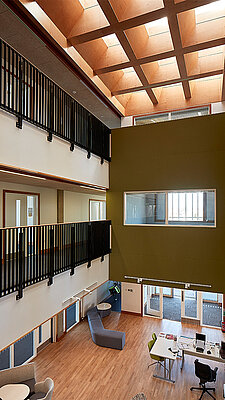

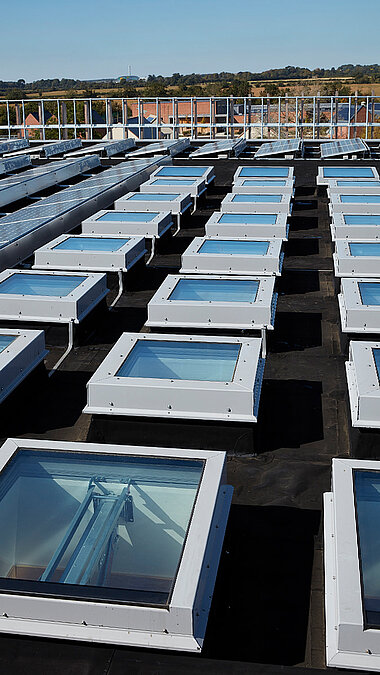

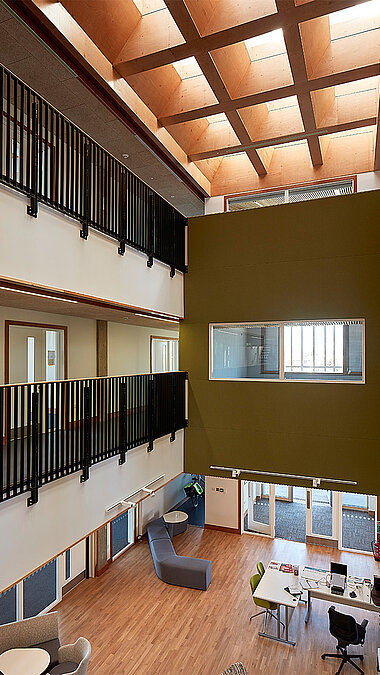

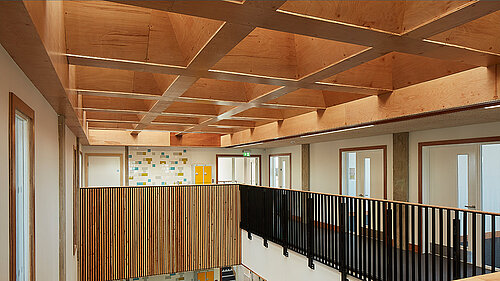

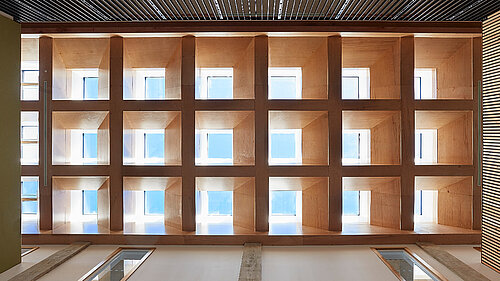

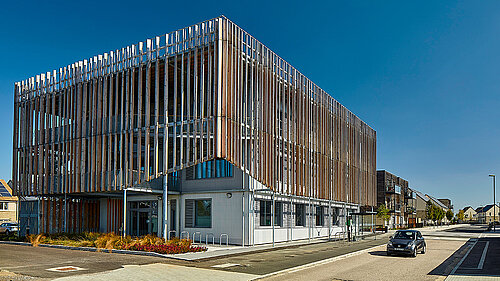

Click here to view our Passivhaus references

Certified energy efficiency

First skylight certified to Passivhaus standard
Highest Passivhaus efficiency class – phA advanced component
Heat transmission coefficient (U_SL): 0.84 W/(m²K)

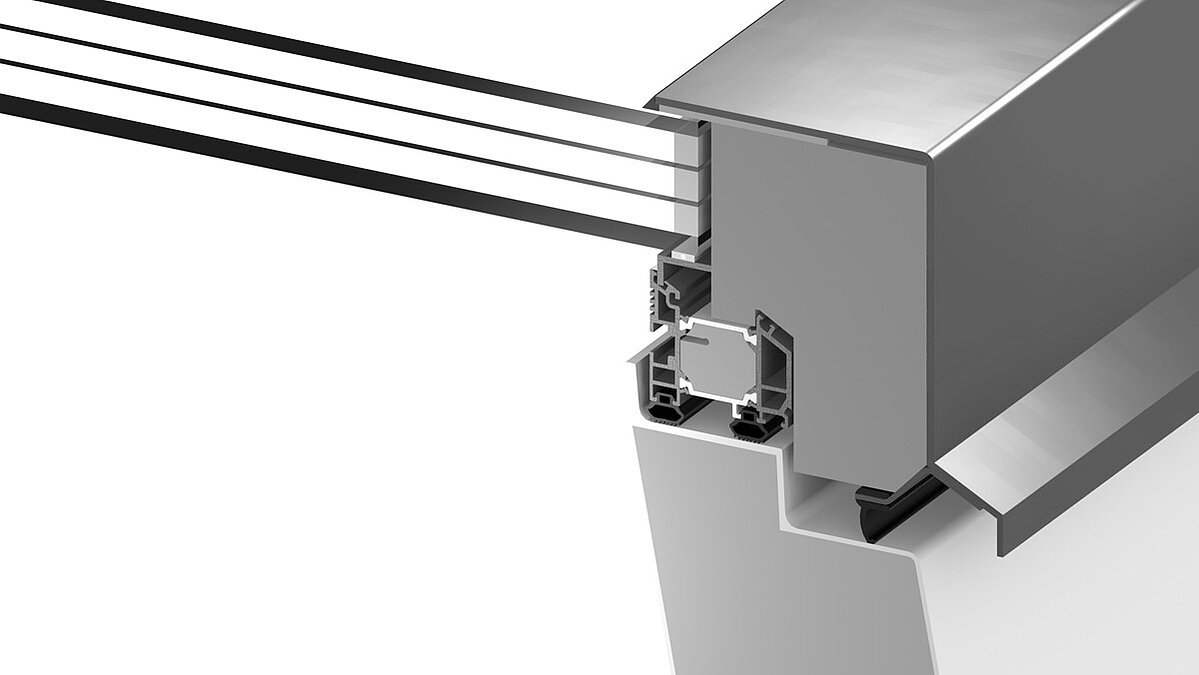

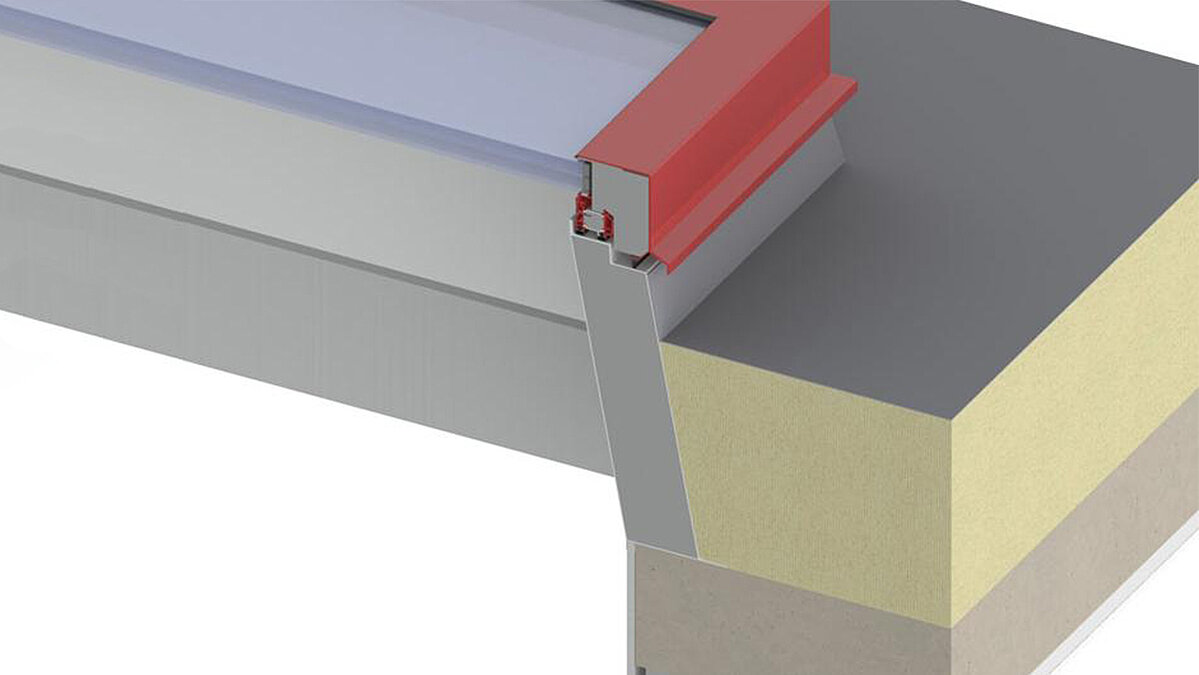

Overall system with flawless isothermal characteristics and free of thermal bridges
Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2
Outstanding air-tightness due to a balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight FE Passivhaus in accordance with ISO 14025 and EN 15804 (EPD – modules A1 - D)

Comfort

Pleasant indoor climate due to natural ventilation and sun protection

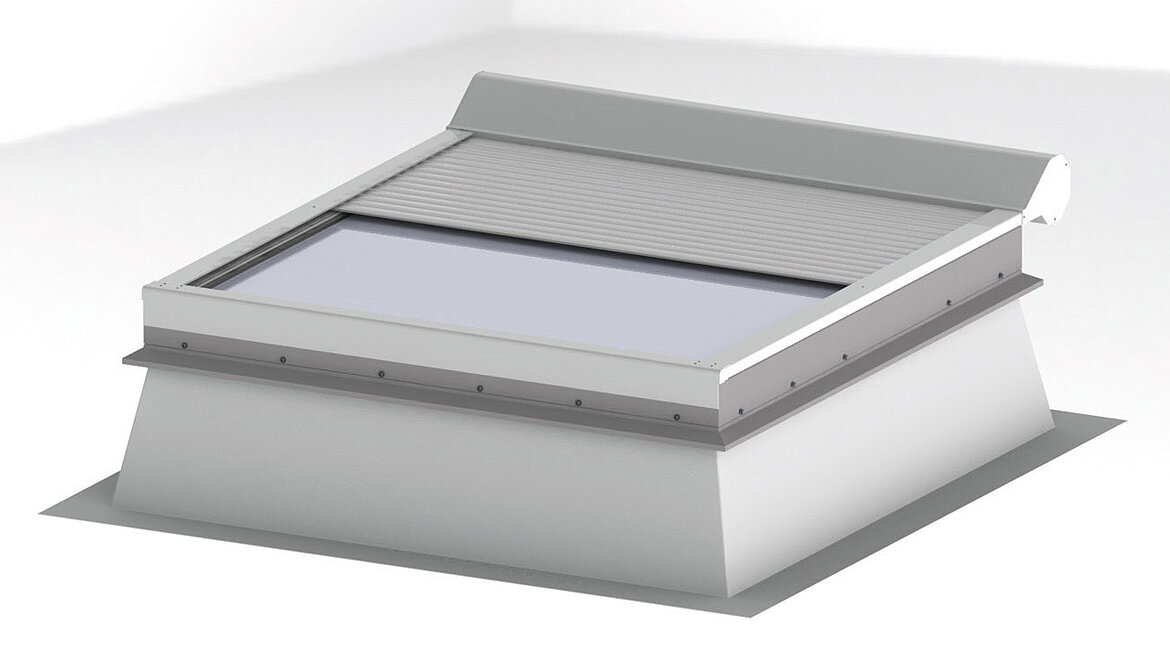

Adjustable sun protection on the inside or outside
High sound insulation
Convenient remote control for ventilation and sun protection systems
Daylight element and upstand are fully pre-assembled at the factory and locked – they can thus be retrofitted with an opener system at any time

Design

Discreet appearance from inside and outside
Wide variety of colours based on RAL system (surrounding profile)

Safety

Best possible comfort and hygiene properties according to DIN 4108-2 on the glazing’s interior as well as the frame and cross-bar profiles
Permanent fall-through-proof
Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

Glare protection

Inside glare protection, electrically powered
Fastened onto the inside surface of the upstand

Wireless remote control

Allows convenient operation of sun protection system and ventilation motor

Insect protection

Integrated into the upstand

Range of RAL colours

Colour coating according to RAL colours

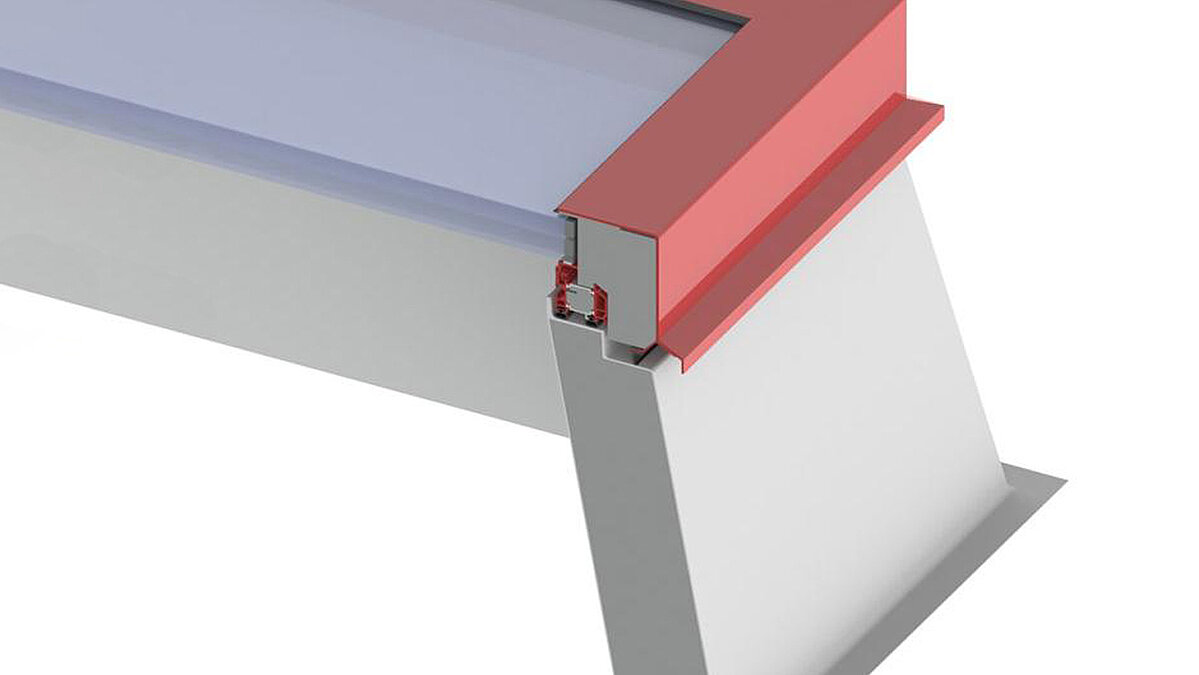

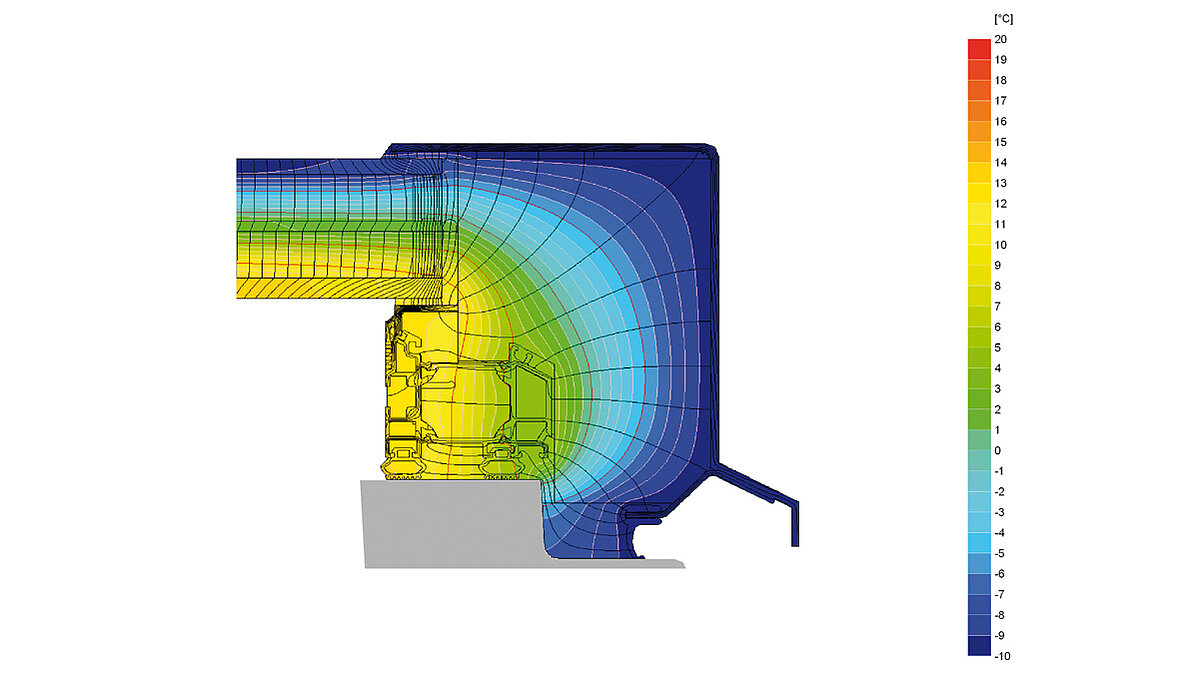

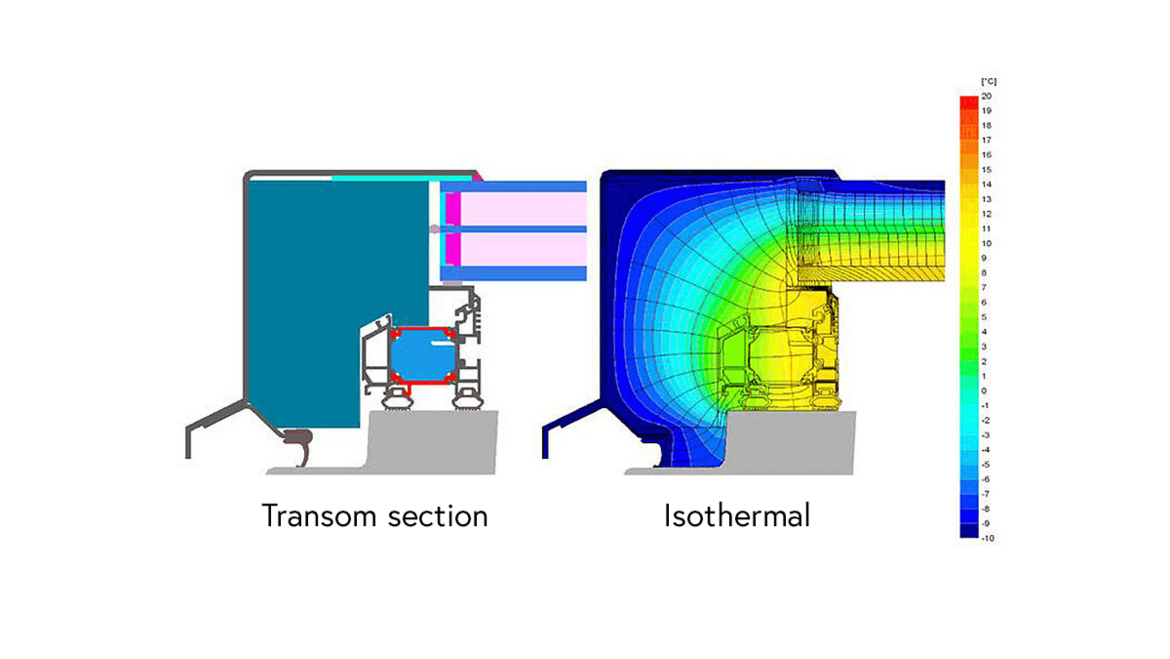

The intelligent use of highly efficient materials limits the minimum surface temperature on the inside of the glass roof construction, thus preventing condensate and mould formation.

Mould grows on surfaces at a relative humidity of just 80 percent or higher. When the indoor temperature is 20° C and humidity is 50 per cent (standard conditions), this corresponds to a surface temperature of 12.6 °C.

This data is used to calculate the f_Rsi value. A coefficient which indicates the likelihood of mould growth. If this value is less than 0.7, there is a risk of mould forming.

The value is stable on the level 0.73 for the Glass Skylight FE Passivhaus. This corresponds to a minimum surface temperature of 13.3 °C, which is an ideal temperature to ensure comfort and save energy.

	U_f-value [W/(m²K)]	Width [mm]	Psi_g [W/(mk)]	f _Rsi=0,25 [-]
Lower surface	0,61	116,4	0,029	0,73
Side/upper surface	0,61	116,4	0,029	0,73


Top roof edge size in cm	80/80	90/90	90/120	100/100	100/150	100/200	120/120	150/150	180/180
Glare protection	O	O	O	O	O	O	O	O	O
Sun protection	O	O	O	O	O	O	O	O	Not available
Insect protection	O	O	O	O	O	O	O	O	O

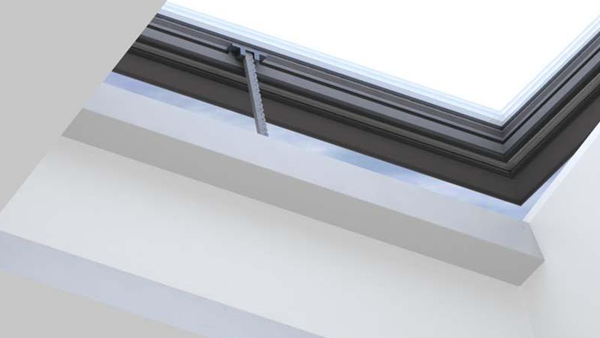

Concealed chain drive	S	S	S	S	S	S	S	S	S
Concealed cable routing	S	S	S	S	S	S	S	S	S
Concealed reed contact	O	O	O	O	O	O	O	O	O
Lockable ventilation	O	O	O	O	O	O	O	O	O
SHEV staircase set	O	O	O	O	O	O	O	O	O
Range of RAL colours	S	S	S	S	S	S	S	S	S
Mounting loop	S	S	S	S	S	S	S	S	S
Dark flap sandwich panels	O	O	O	O	O	O	O	O	O
Upstand 0° incline, 40 cm	S	S	S	S	S	S	S	S	S
Upstand 0° incline, 50 cm	O	O	O	O	O	O	O	O	O

O - Option, S - Serie

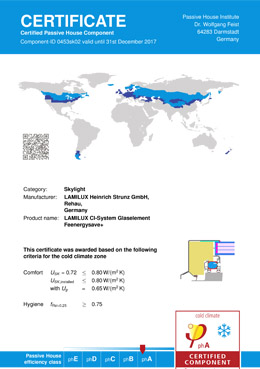

The LAMILUX Glass Skylight FE Passivhaus+ is the world's first skylight suitable for Passivhaus buildings in Scandinavia and many regions of Austria, Switzerland and Eastern Europe. As a further development to our LAMILUX Glass Skylight FE Passivhaus, it meets the criteria for the cold climate zone and has been awarded the highest Passivhaus classification, phA.
