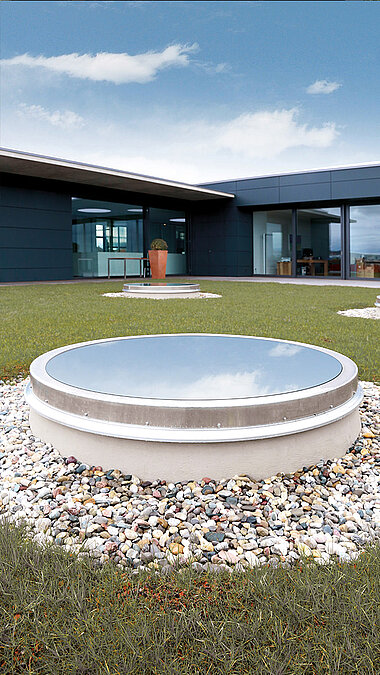

LAMILUX Glass Skylight FE Circular

• High daylight incidence with numerous glazing types
• Available with double or triple glazing, TSG on the outside and LSG on the inside (LSG can be fitted with a clear or light-coloured matt film) with Ug-values of 1.1 to 0.6 W/(m²K)
• Outstanding airtightness thanks to the balloon double-sealing system: Performance class 4 – tested in accordance with EN 12207
• Optimal thermal insulation thanks to the overall structure free of thermal bridges
• Intelligent controls for natural ventilation
• Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE

• NEW: Upstands with 5° inclination for optimised self-cleaning available
• Pleasant indoor climate thanks to natural ventilation
• Effective soundproofing of glazing types (DIN EN ISO 140-3 up to 45 dB)
• Daylight element and upstand are fully pre-assembled at the factory and locked. This means they can be retrofitted with an opener system at any time.

• Approved fall-through protection
• Minimised risk of condensation on the glazing’s interior and on the frame profile
• Anti-burglary protection: Also available with resistance class 2
• Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5

• Discreet appearance from inside and outside
• Wide variety of colours based on RAL system (surrounding profile)

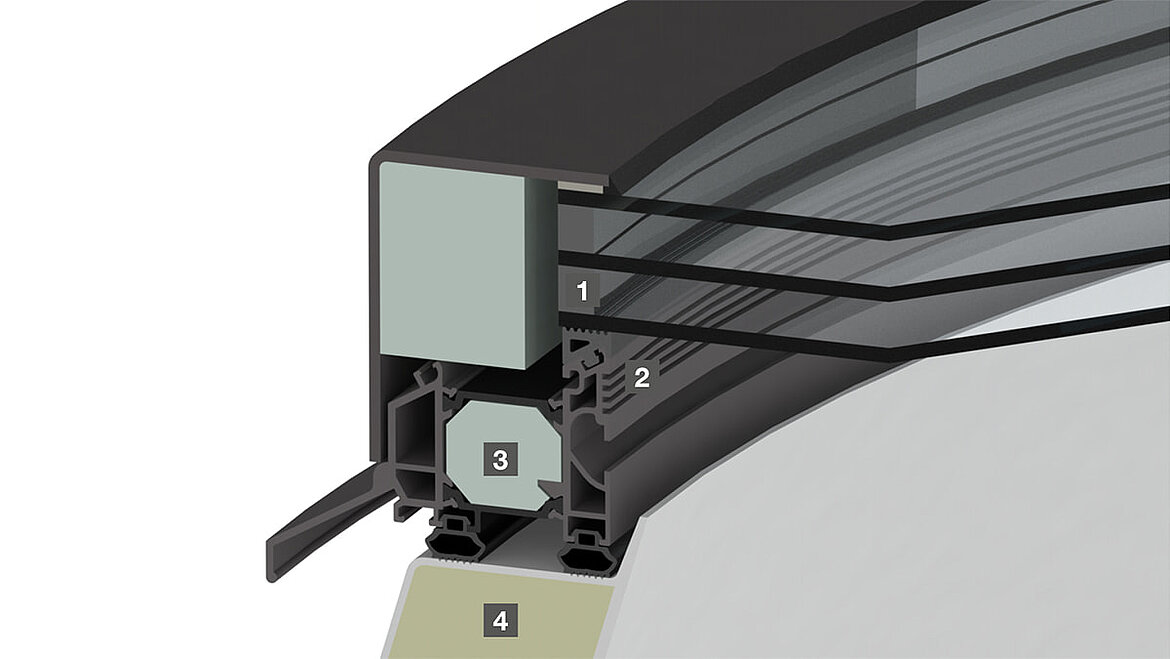

1 - "Warm edge" (spacers between the panes, made of materials with low thermal conductivity), as a standard feature

2 - TAD – Thermo Active Design: Kink-free isothermal curve in the profile system

3 - Aluminium border frame with optimised insulation core

4 - Heat-insulated upstand made of glass-fibre reinforced composite: Manufactured without joints and with a continuous insulation core made of PU foam, 60 mm thick

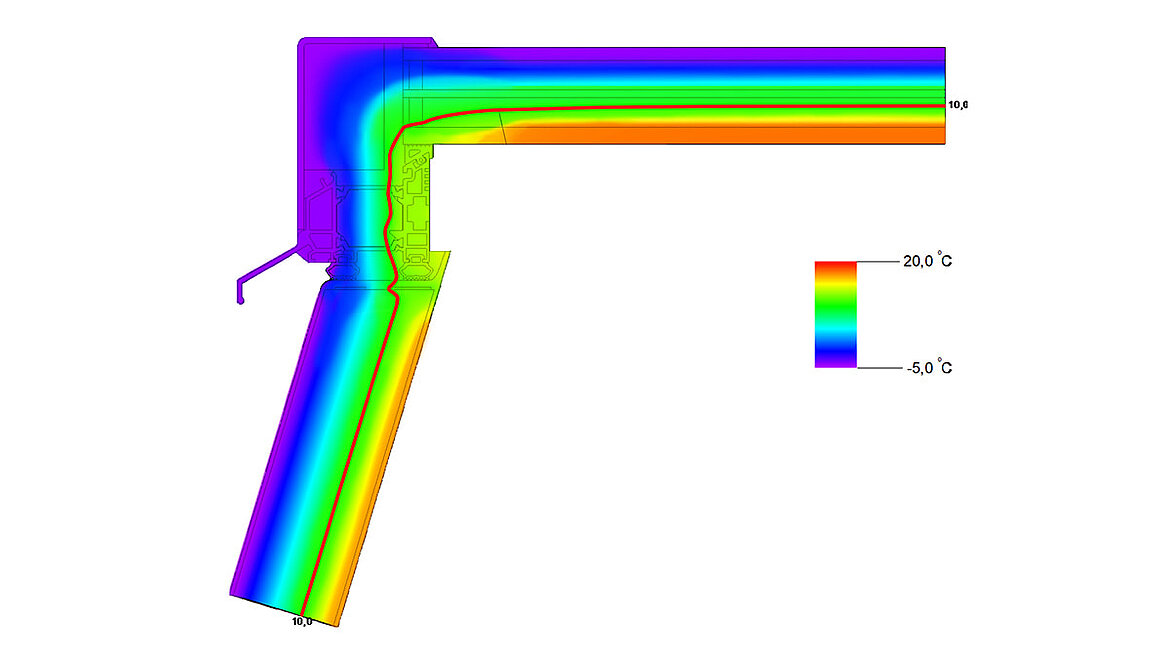

Isothermal characteristics – Thermal protection made visible

Optimised isothermal lines for consistent thermal insulation zones without any weak spots provide superior thermal protection in all sections throughout the structure, presenting evidence of optimum energy efficiency. LAMILUX calls this thermal bridge-free product concept

TIP – Totally Insulated Product

The Glass Skylight F100 offers complete and optimal thermal insulation in a single compact unit which is free of thermal bridges. The Uw-value of 1.3 to 1.0 W/m²K is calculated according to EN ISO 10077-1 for a reference element with Ø 120cm and is dependent on the type of glazing selected.
