Smoke Lift Continuous Rooflight B
preventive fire protection
Smoke and heat exhaust ventilation units (SHEV units) are essential components in any fire-protection concept. These life-saving, asset-protecting systems are compulsory requirements for “preventive fire protection”. We provide for a whole range of requirements, tailored to your project's needs:
Open-only, open/ close, pneumatic, 24V, 230V; certified to EN 12101-2, SHEV designed and dimensioned in accordance with DIN 18232-2, regional building regulations and industrial construction guidelines – for rooflight domes, opaque flaps, individual flaps, continuous rooflights, glass roof constructions, staircases, elevator shaft smoke extraction and wall glazing.
Product description
Arched continuous rooflight SHEV unit
Benefits at a glance
- Meets all requirements of DIN EN 12101-2 as smoke and heat exhaust device
- Many flap combination for market-leading smoke and heat exhaust values
- Integration as single or double flap possible
- Fast opening in case of fire via thermal, thermal and CO2 remote or electric remote release
- Pneumatic or electrical control of the SHEV flap systems for ventilation function
- Stable overall system even under strong wind loads, at cold temperatures down to -25°C inside temperature or under the influence of snow load (up to SL 1100)
Technical details
Arched continuous rooflight SHEV unit

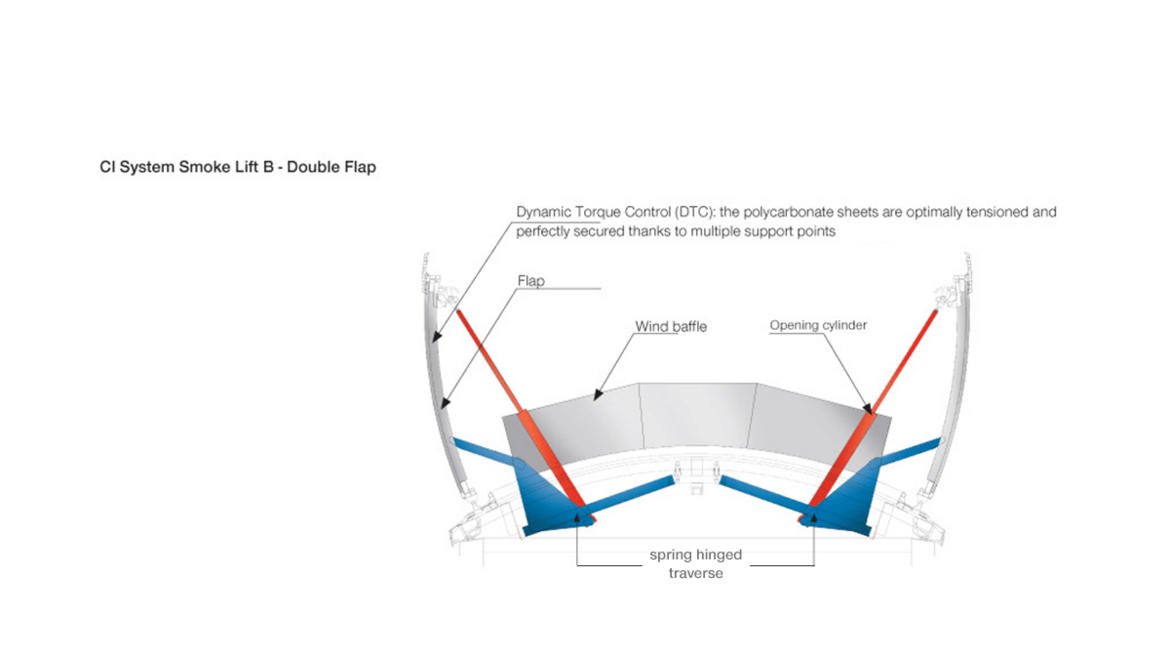

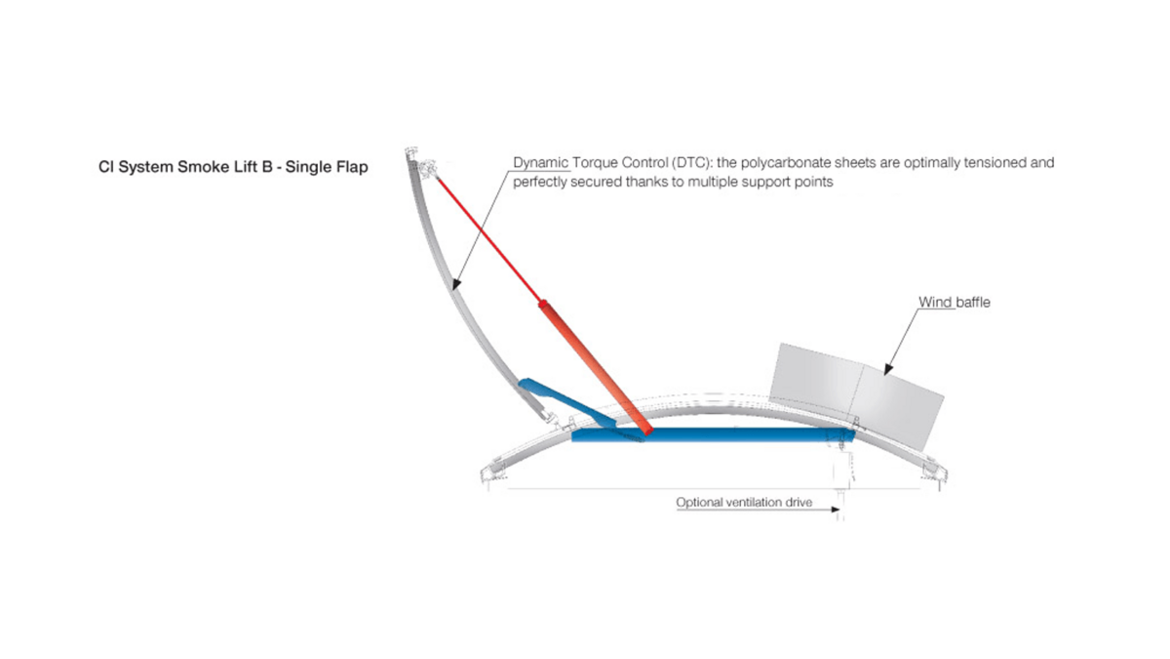

Dynamic torque control – DTC

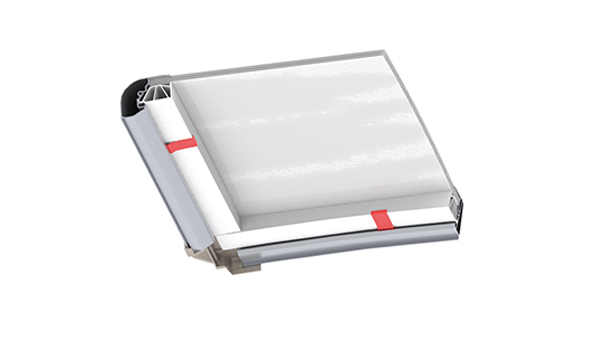

Effect: Integrated suspension beneath the glazing bar in the mounting frame (DTC spring) ensures that the glazing is perfectly tensioned. It is therefore secured in position by a specific holding force even when subjected to load.
Benefit: The glazing remains perfectly tensioned and secured in all situations, as any acting loads are optimally cushioned and absorbed by the mounting frame.
Protection in the event of heavy wind loads
- High stability of flaps – even in opened condition
- Even better anchorage for polycarbonate glazing
- Additional flap system protection due to spring-mounted, multiple-joint traverses
Spring-mounted multiple-joint traverses
Effect: Directly attached to the flap construction, the spring-mounted multiple joint traverses ensure that the SHEV flaps are firmly held in position when open, even when exposed to strong gusts of wind.
Advantages: Smoke extraction is also ensured under adverse weather conditions, thus ensuring optimum safety.
Sizes and values
Arched continuous rooflight SHEV unit

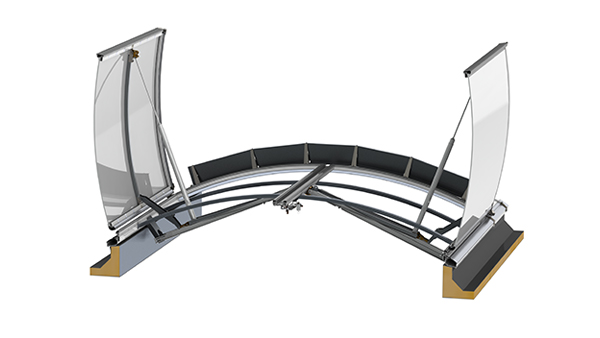

Smoke Lift Continuous Rooflight B DOUBLE
| Type Top roof edge size | Dimension x | Dimension y | Opening area Ageo | Aerodynamically effective opening surface |
|---|---|---|---|---|
| 250 | 100 | 250 | 2.39 m² | 1.48 m² |
| 250 | 200 | 250 | 5.02 m² | 3.26 m² |
| 250 TS* | 420 | 250 | 10.28 m² | 6.37 m² |
| 300 | 100 | 300 | 2.87 m² | 1.78 m² |
| 300 | 200 | 300 | 6.02 m² | 3.91 m² |
| 300 TS* | 420 | 300 | 12.34 m² | 7.40 m² |

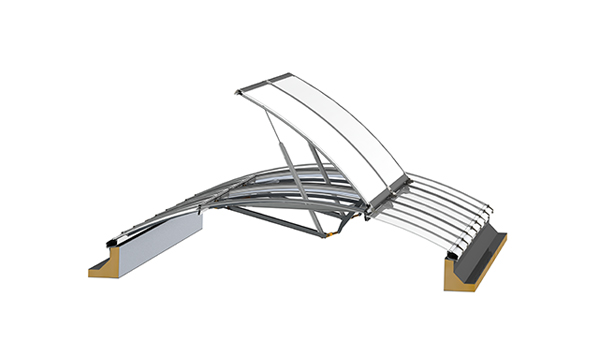

* tandem-serial smoke and heat exhaust ventilation unit

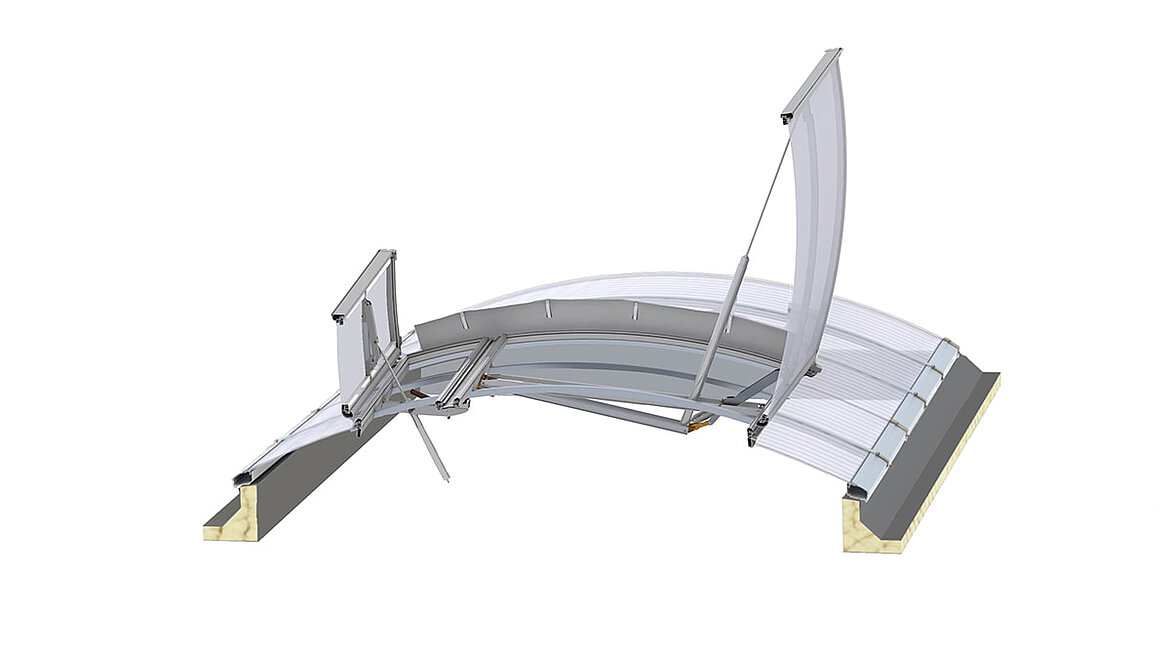

Smoke Lift Continuous Rooflight B ASYMMETRICAL
| Type Top roof edge size | Dimension x | Dimension y | Opening area Ageo | Aerodynamically effective opening surface |
|---|---|---|---|---|
| 175 | 100 | 175 | 1.67 m² | 1.04 m² |
| 175 | 200 | 175 | 3.51 m² | 2.28 m² |
| 175 TS* | 420 | 175 | 7.20 m² | 4.68 m² |
| 200 | 100 | 200 | 1.91 m² | 1.18 m² |
| 200 | 200 | 200 | 4.01 m² | 2.61 m² |
| 200 TS* | 420 | 200 | 8.22 m² | 5.34 m² |
* tandem-serial smoke and heat exhaust ventilation unit

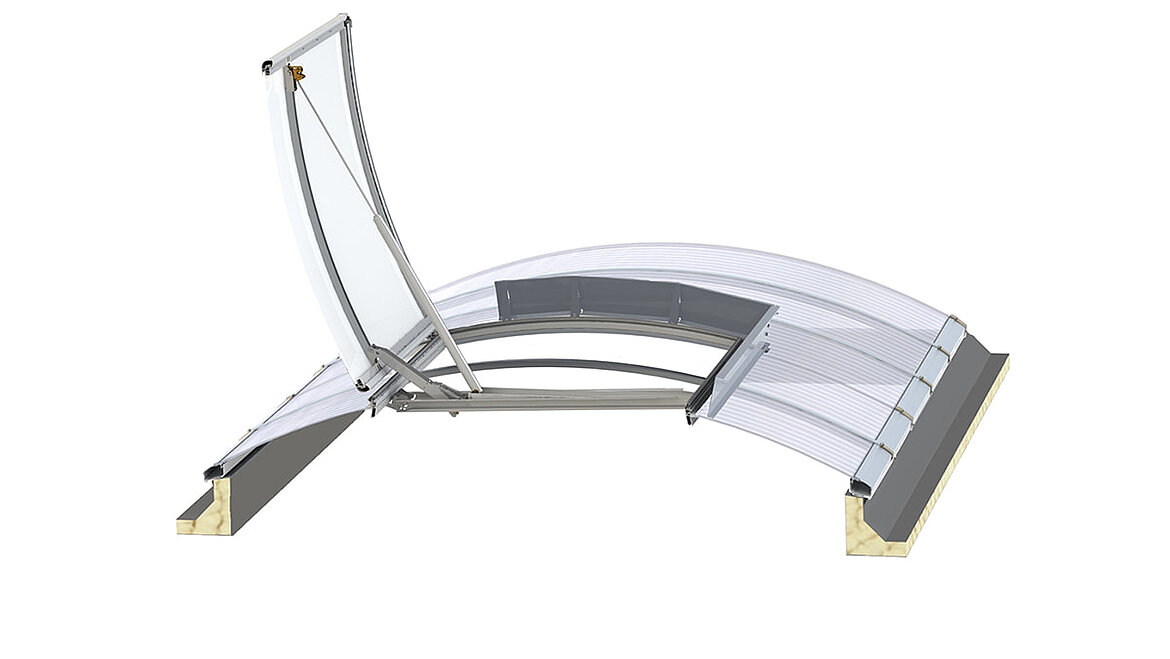

Smoke Lift Continuous Rooflight B SINGLE FLAP
| Type Top roof edge size | Dimension x | Dimension y | Opening area Ageo | Aerodynamically effective opening surface |
|---|---|---|---|---|
| 100 | 100 | 100 | 0.93 m² | 0.59 m² |
| 100 | 200 | 100 | 1.96 m² | 1.27 m² |
| 100 TS* | 420 | 100 | 4.01 m² | 2.53 m² |
| 125 | 100 | 125 | 1.17 m² | 0.74 m² |
| 125 | 200 | 125 | 2.46 m² | 1.60 m² |
| 125 TS* | 420 | 125 | 5.04 m² | 3.18 m² |
| 150 | 100 | 150 | 1.43 m² | 0.90 m² |
| 150 | 200 | 150 | 3.01 m² | 1.96 m² |
| 150 TS* | 420 | 150 | 6.17 m² | 3.83 m² |
* tandem-serial smoke and heat exhaust ventilation unit
