Our Roof Access Hatches

With maximum glass surface and high-quality materials, our Flat Roof Access Hatches become the highlight on the roof of any building. In addition to optimised thermal insulation values and proven durability, the focus is primarily on architectural standards and comfort. We offer you flat roof access hatches in various sizes and opening variants to ensure the ideal solution on your roof. Our elements also meet individual requirements in terms of glazing and can be freely configured with thermal insulation or special solar protection glazing. We offer you the full colour range of the RAL chart, inside as well as outside, for our high-quality aluminium frame construction. In addition, our products can be designed as a blind system with external shade systems to reduce the amount of heat entering the building in summer.

Flat Roof Access Hatch with folding mechanism

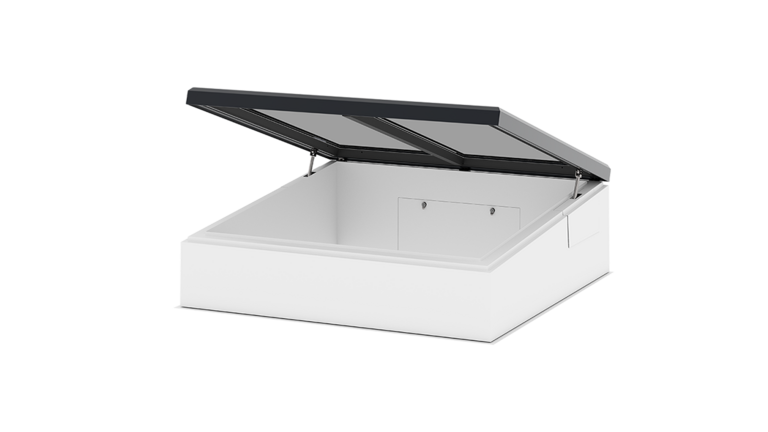

LAMILUX Flat Roof Access Hatch Comfort Swing, open

For more space on your roof terrace thanks to folding mechanism

Convenient and simple stepless opening due to concealed hydraulic cylinder

Roof access hatch folds up by 70° or 84° in just a few seconds

Flood your building with maximum daylight incidence using a filigree frame construction

With triple insulating or solar protection glazing effective against significant heat build-up in summer

Very good thermal insulation with an Ug value of approx. 0.6 W/(m²K)

Our Flat Roof Access Hatches are safe: approved fall-through protection according to DIN 18008-6

Flat Roof Access Hatch with horizontal opening

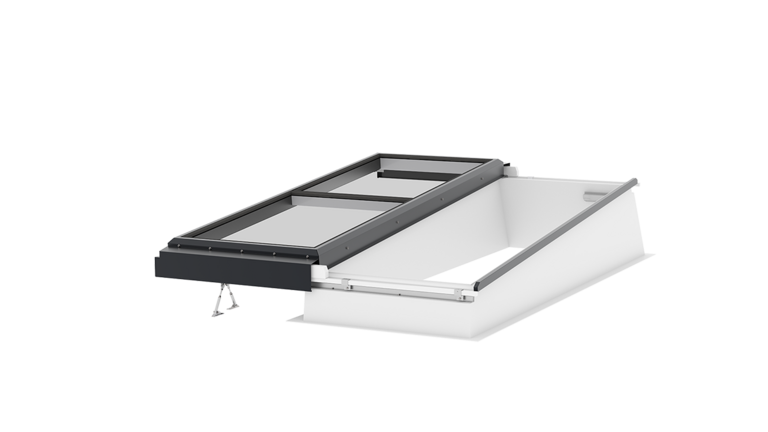

LAMILUX Flat Roof Access Hatch Comfort Solo, open

Horizontal opening by means of two or four concealed rack-and-pinion drives

Comfortable access to the roof terrace via stairs (provided by customer) with a width of 120 cm

With double or triple insulating or solar protection glazing effective against significant heat build-up in summer

Very good thermal insulation with an Ug value of 0.6 W/(m²K) (Solo) or 1.1 W/(m²K) (Duo)

Our Flat Roof Access Hatches are safe: approved fall-through protection according to DIN 18008-6

Maximum daylight,

optimum energy values –

our Flat Roof Access Hatches Comfort

Flat Roof Access Hatch Comfort Square

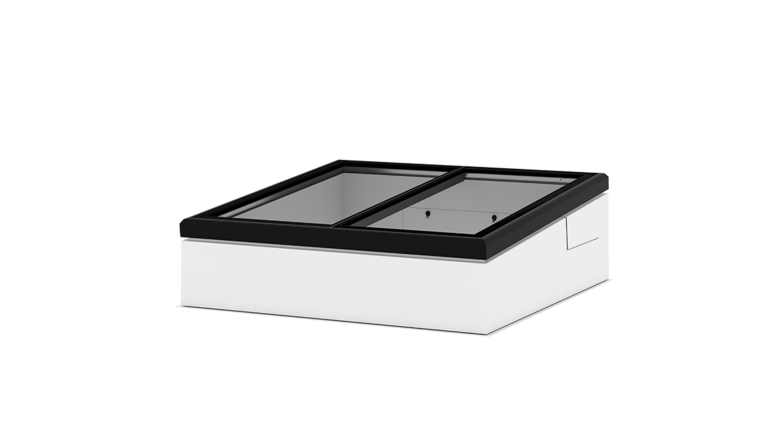

LAMILUX Flat Roof Access Hatch Comfort Quadrat, closed

Architectural freedom for planning, roof access now also possible via spiral and platform staircase (provided by customer)

For more space on your roof terrace thanks to the folding mechanism: roof access hatch folds up by 70° in approx. 45 seconds

Maximum daylight incidence due to intricate frame construction with 4 m² glass surface

Advanced self-cleaning effect due to 5° inclined glass surface and level water drainage

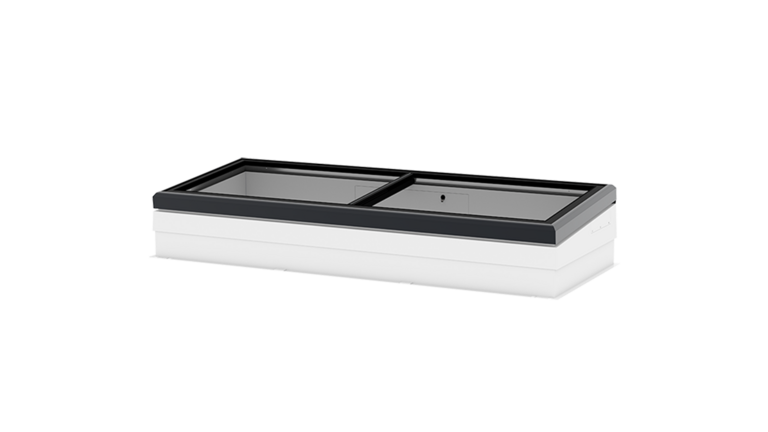

Flat Roof Access Hatch Comfort Swing

Convenient access to the roof terrace using the staircase (provided by customer)

For more space on your roof terrace thanks to the folding mechanism: roof access hatch folds up by 84° in approx. 25 seconds

Maximum daylight incidence due to filigree frame construction in two different sizes: 100 x 300 cm and 100 x 350 cm

Advanced self-cleaning effect due to 5° inclined glass surface and level water drainage

Highest design standards

with maximum benefit –

our Flat Roof Access Hatches Comfort

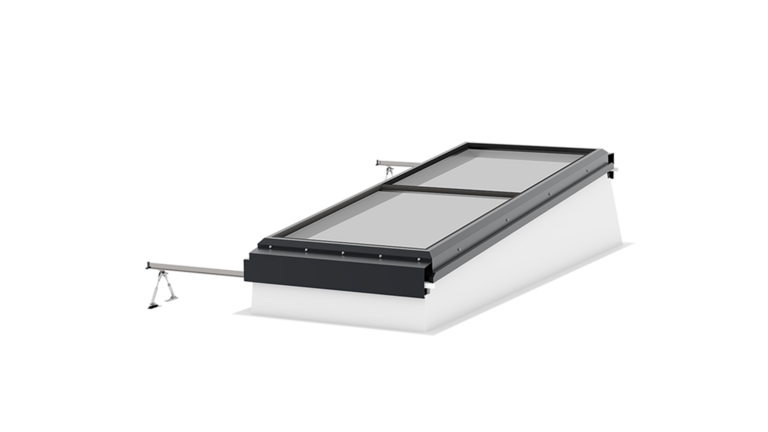

Flat Roof Access Hatch Comfort Solo

The roof access hatch allows you to have a stepless ventilation position: horizontal opening via two 24V drives

Various triple glazing types with an Ug value of approx. 0.6 W/(m²K)

Maximum daylight incidence due to filigree frame construction in size 120 x 350 cm

Unhindered water and dirt drainage thanks to 6° inclination of the element

Flat Roof Access Hatch Comfort Duo

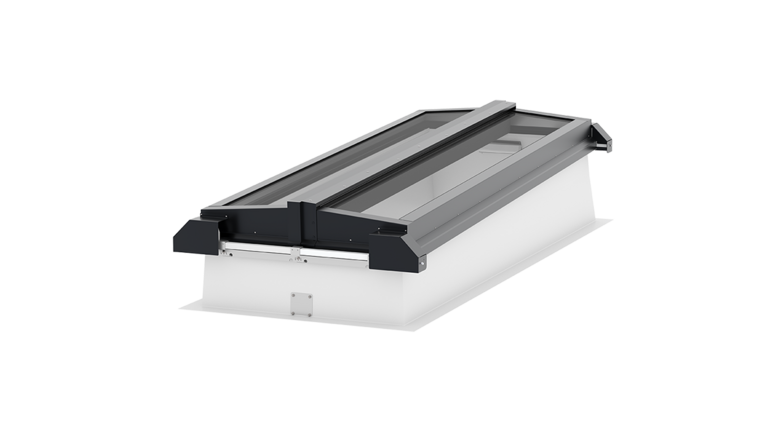

LAMILUX Flat Roof Access Hatch Duo, closed

The roof access hatch allows you to have a continuously adjustable ventilation position for both opening flaps: horizontal two-sided opening with four 24V drives

Various double glazing types with an Ug value up to 1.0 W/(m²K)

Size 120 x 300 cm

Good water and dirt drainage thanks to inclined glazing and 3° inclination of the element

Exclusive access to the roof terrace

Flat Roof Access Hatches

Choose the right opening system for you
