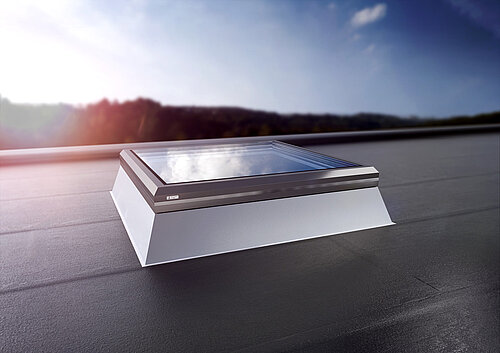

LAMILUX Glass Skylight FE*

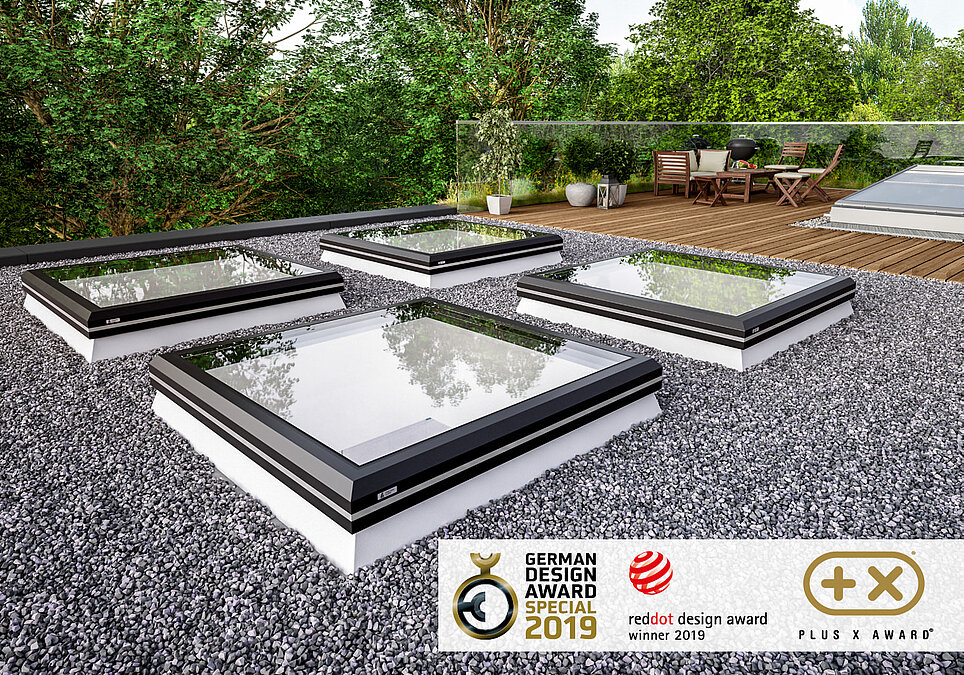

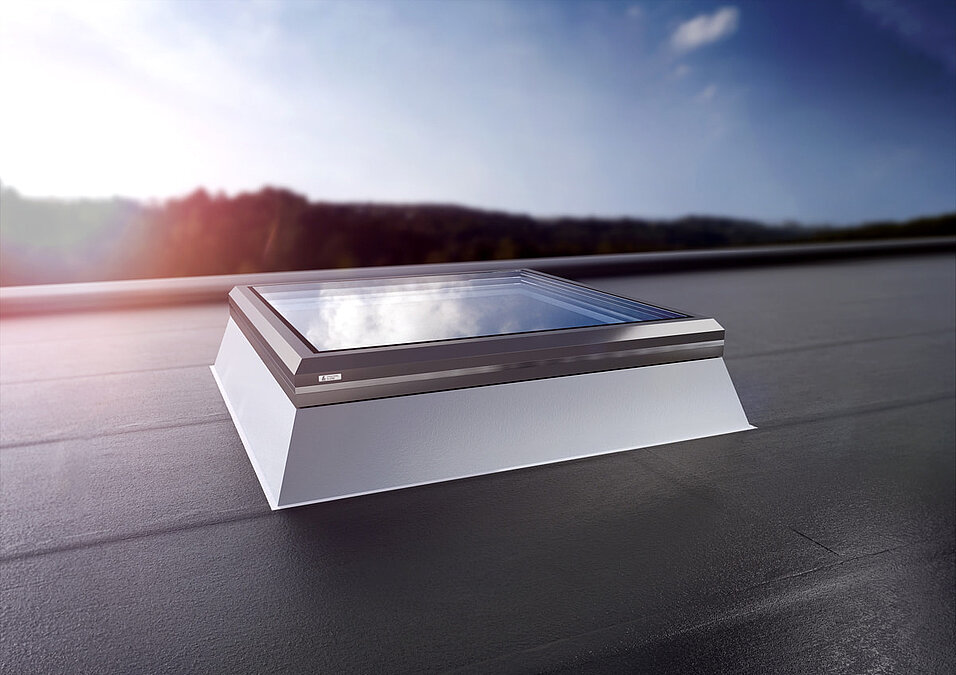

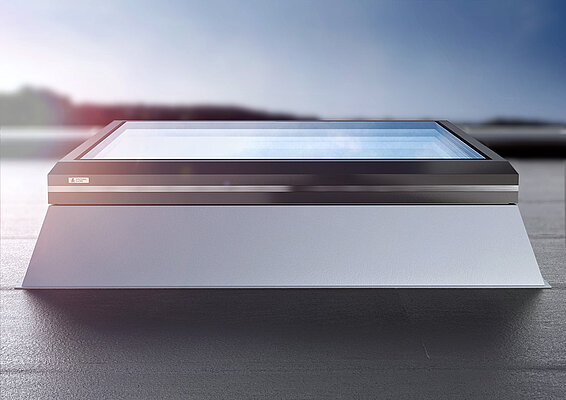

The new Glass Skylight FE – functions that also shine optically
*Certified for the United States according to AAMA/WDMA/CSA 101/IS2/A440-17.
Advantage at a glance

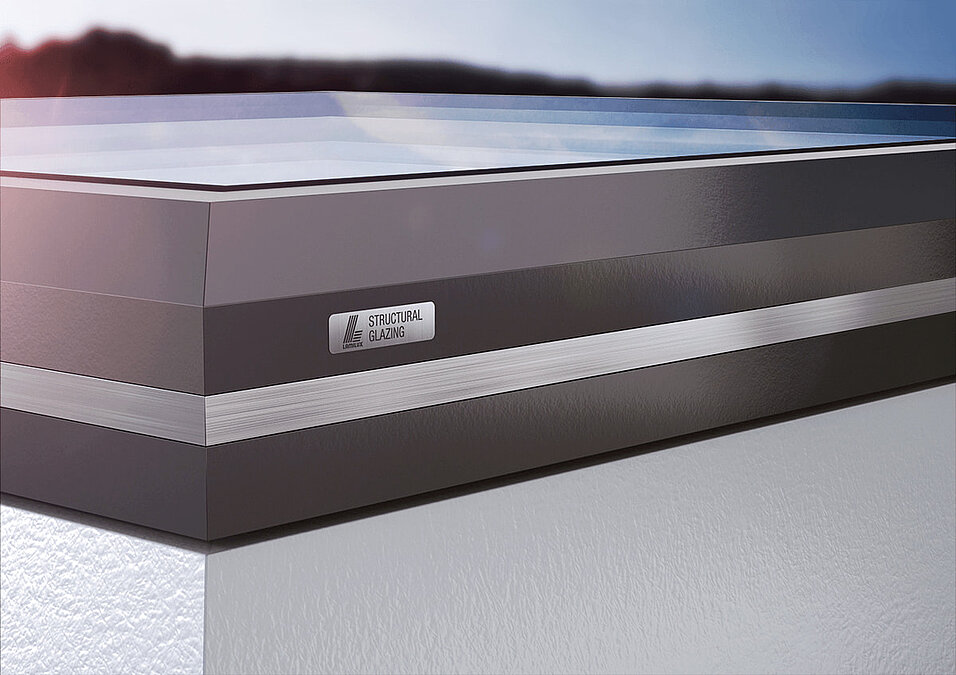

Glass Skylight FE: Aluminium profile

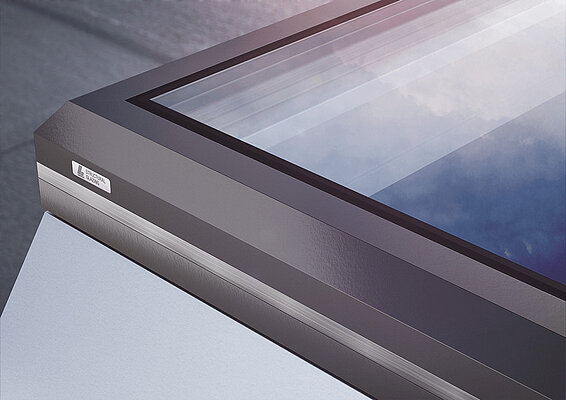

Design
- Award-winning:
German Design Award, reddot design award, Plus X Award - Uniform appearance
- Aesthetic, classical and elegant design language

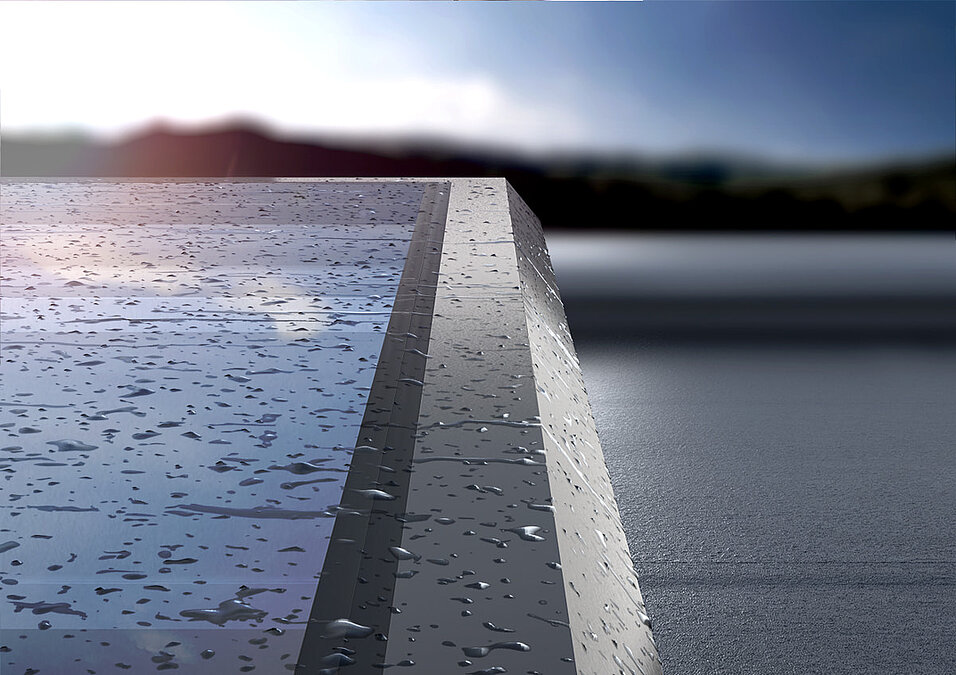

- Avoidance of dirt on the glass surface
- Wide variety of colours based on RAL system (surrounding profile)
Variety
- Large range of sizes
- Customisation to the overall concept
- Various glazing types
- Various drive options
Quality

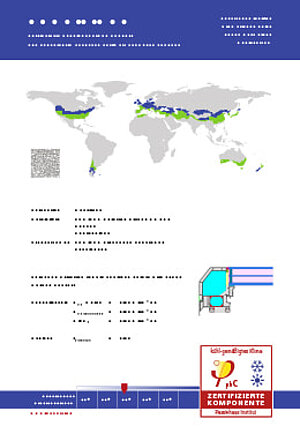

- Passivhaus standard certified skylight in Passivhaus efficiency class phC
- Overall structure free of thermal bridges
- Water tightness under driving rain to DIN EN 1027 = E (1950)
- Optimised soundproofing and minimised rain noise
- Long service life
- Permeability to air in line with DIN EN 1026 = Class 4
- Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Skylight FE in accordance to ISO EN 15804
Use
- Our Flat Roof Window FE is BIM-Ready - Download at bimobject.com
- Fully pre-assembled
- Simple installation
- Efficient maintenance
- Versatile adapter frame
Safety
- Fall-proof according to DIN EN 18008-6
- Flat Roof Window with general building inspection approval in "Structural Glazing" construction method - certified by the German Institute for Construction Technology in Berlin (DIBt)
- Smoke exhaust opening
- Resistance against wind load in line with DIN EN 12211 = C5
- Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
Product configurator

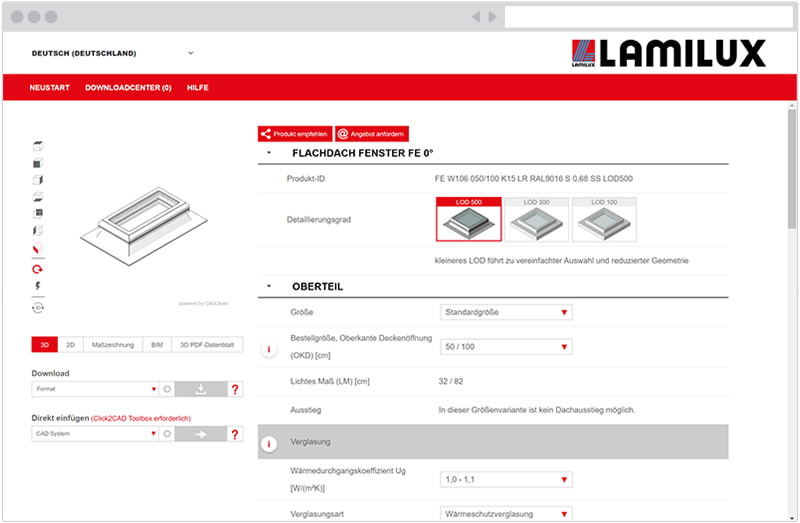

Create an individual product variant, guided by a dynamic dialog with 3D preview in real time. Then share, request with one click or download BIM objects, 2D and 3D CAD models, images, dimensional drawings or data sheets in the desired file format.
Highlight for all planners
With BIM or without – the PDF data sheet with all technical properties including active 3D model, dimensional drawing and link back to configuration is the ideal all-in-one document of your desired product variant. Generate it yourself now 24/7.
Variants
Glass Skylight FE: Aluminium profile
Glazing types
Our range of glazing takes different aspects on an individual basis into account
- Incidence of daylight – Transparency and light diffusion
- Energy efficiency / thermal insulation
- Sun protection / protection against heat
- Sound insulation
- Self-cleaning
- Permanently fall-through protection
W102 double-layered heat insulating glazing TSG*
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 80 %
- Energy permeability: approx. 62 %
W110 triple-layered heat insulating glazing TSG*
- Ug-Value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy permeability: approx. 51%
W103 double-layered heat insulating glazing TSG* with matt, light-coloured film (MLF**)
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy permeability: approx. 59%
W303 triple-layered heat insulating glazing TSG* with matt, light-coloured film (MLF**)
- Ug-Value: ca. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49 %
- Energy permeability: approx. 50%
Double-layered solar protection insulation glass S109 60/30 TSG*
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy permeability: approx. 30%
Triple-layered solar protection insulation glass S117 60/30 TSG*
- Ug-Value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy permeability: approx. 28%
Double-layered solar protection glass with matt, light-coloured film
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 49 %
- Energy permeability: approx. 27%
Triple-layered solar insulation glass with matt, light-coloured film 48/25 TSG*
- Ug-Value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 45 %
- Energy permeability: approx. 25%
*TSG: (toughened safety glass) Has increased shock and impact resistance due to special thermal treatment in the manufacturing process. In the event of breakage, the glass breaks into many small pieces without any sharp edges, thereby minimizing the risk of injury.
**MLF: (Matt Light-Coloured Film) By using an opaque film, the incident light is diffused, and a direct blinding effect is avoided.

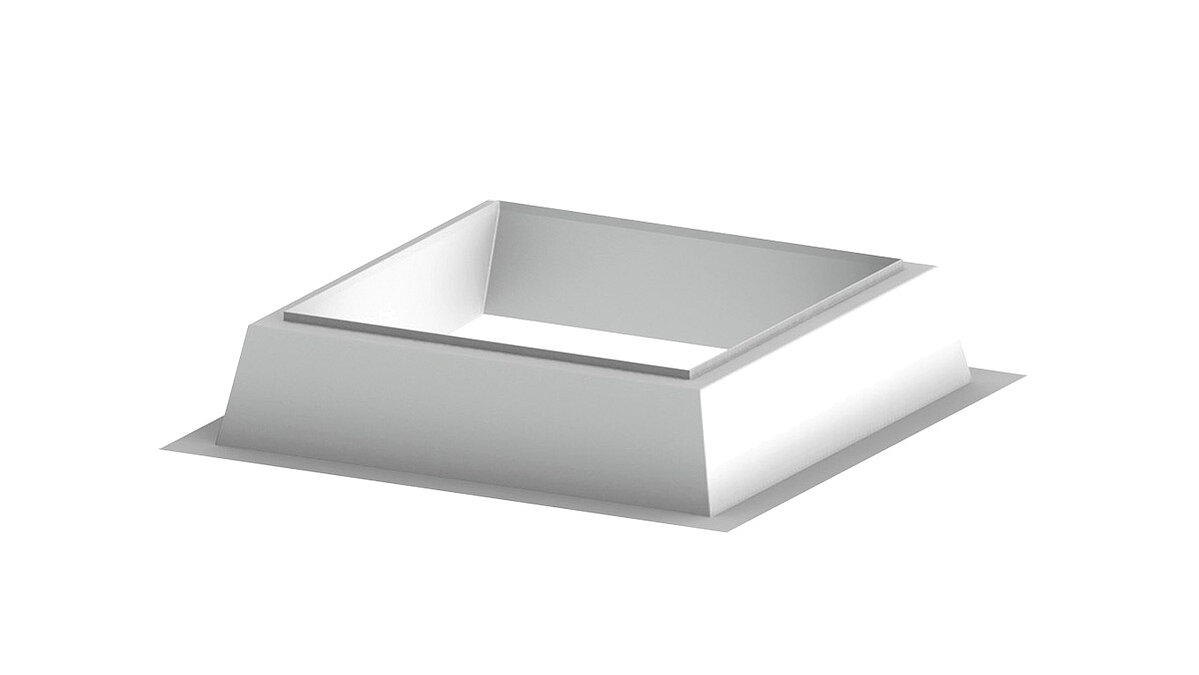

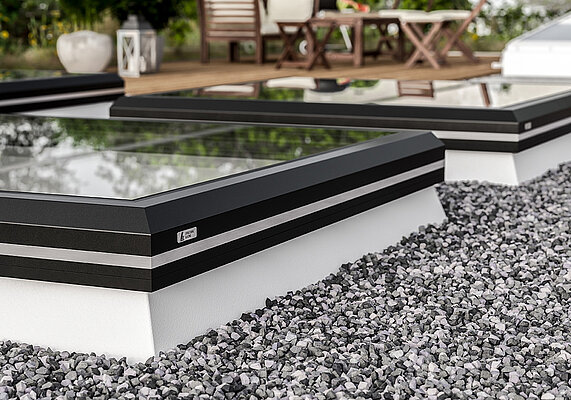

LAMILUX jointless GRP upstand
- Available with upstand heights of 15, 30, 40 and 50 cm
- Seamless upstand
- Complies with DIN 18234 without additional measures
- Element pre-mounted on the upstand, ex works
Accessories
Glass Skylight FE: Aluminium profile
Ventilation units
The following models are available, depending on size and weight of the glass:
Sun Protection
- Inside with safety tie bars
- Outside as blind
- Outside, rigid (sun protection with deciduous tree effect)
- Optionally with integrated solar module

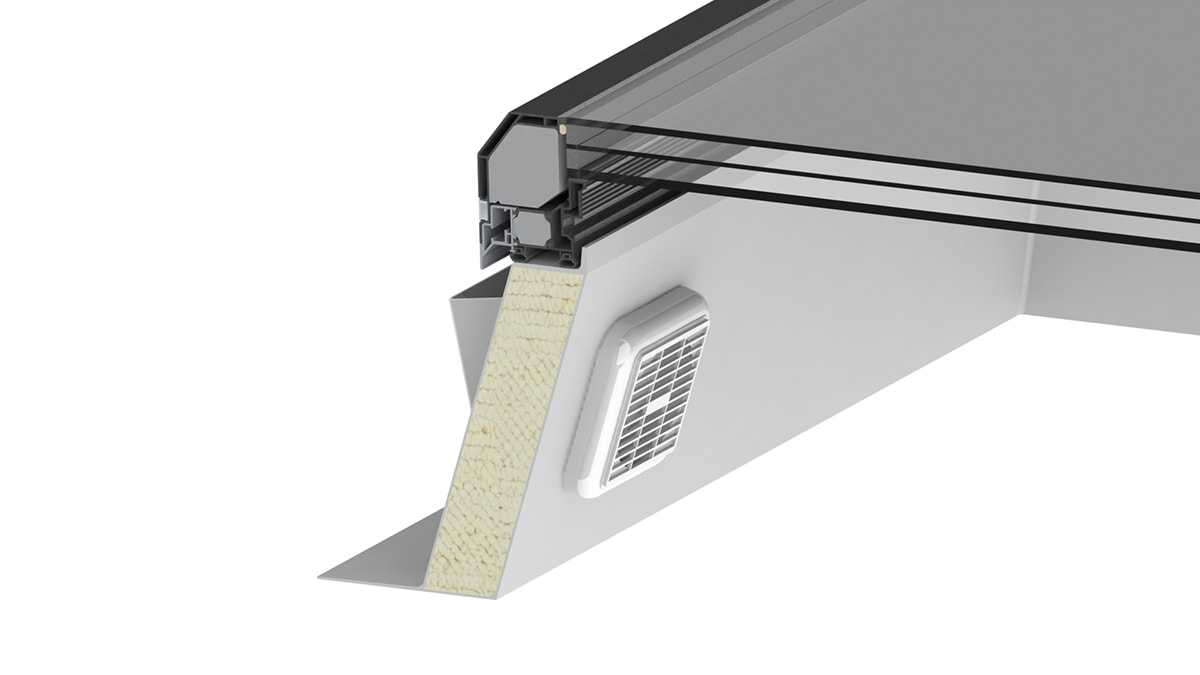

Small space ventilator
- Integrated into upstands with a height of 30, 40, 50 and 70 cm to provide ventilation
- Adjustable speed
- Weatherproof cover and integrated insect protection
- Air flow volume: 180 m³/h
- Protection class: IP34

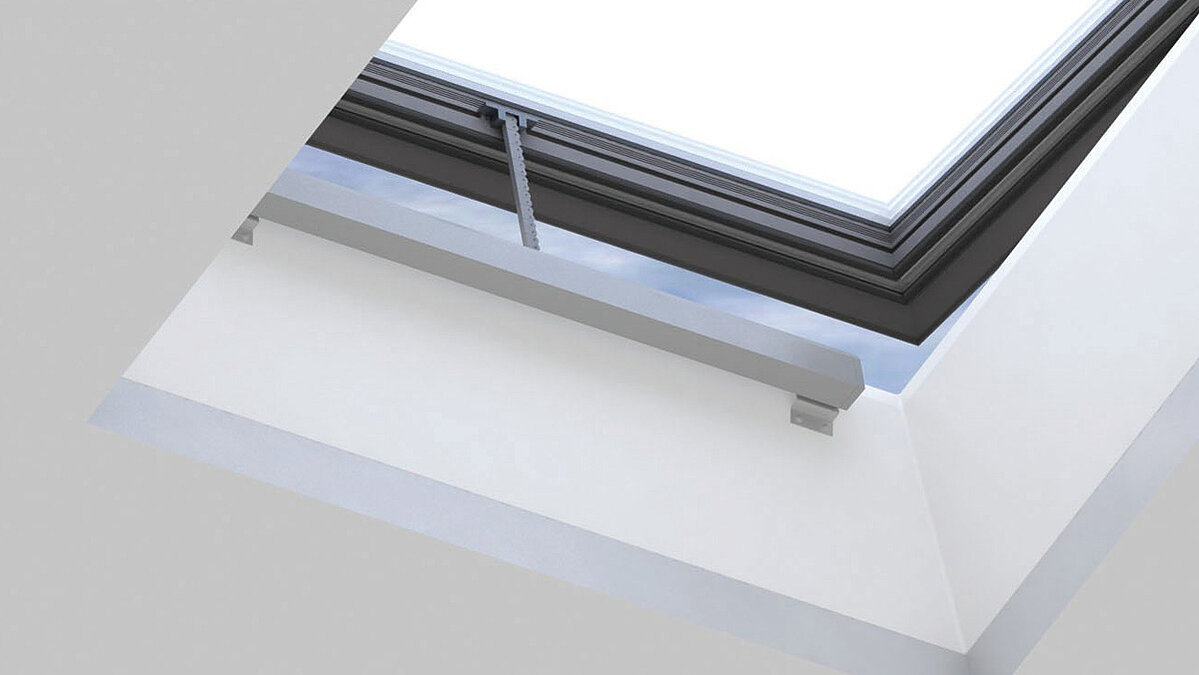

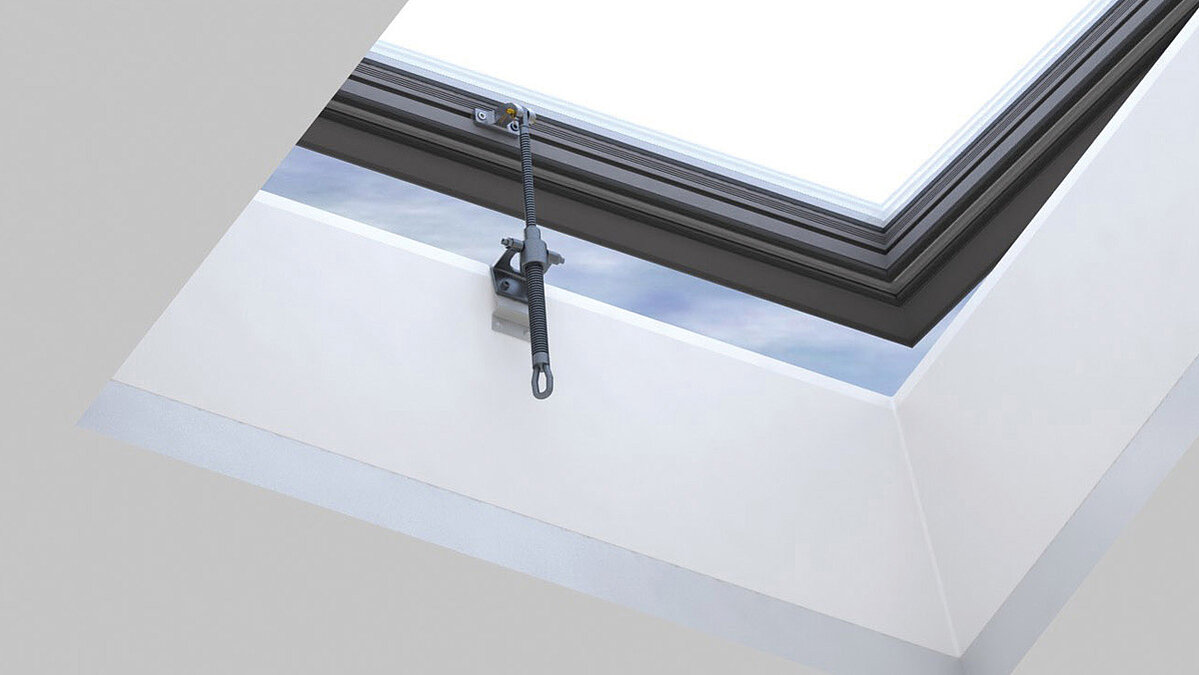

Roof exit with manual opening
- Easy opening with gas pressure springs
- For double glazing up to a size of 120cm x 120cm
- For triple glazing up to a size of 100cm x 100cm

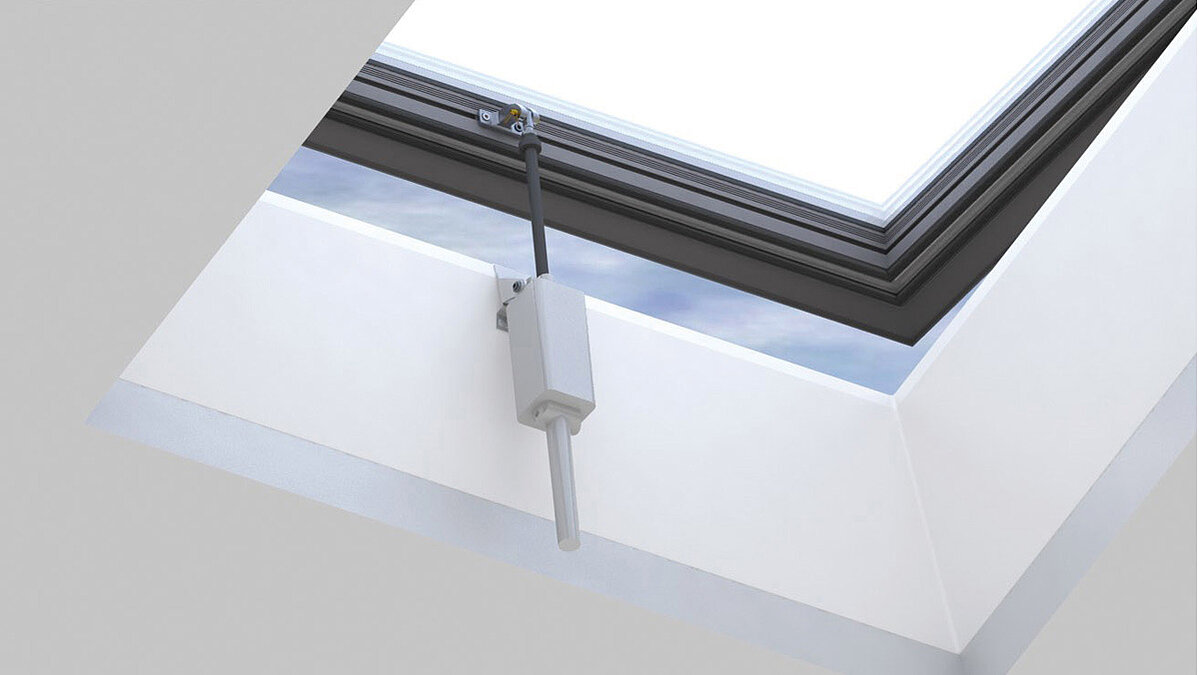

Roof exit with electric opening
- Convenient opening with electric motor
- For double glazing up to a size of 120cm x 150cm
- For triple glazing up to a size of 120cm x 120cm
Wind and rain sensors
- For automated closing in the event of wind and rain, followed by automated opening
- Operated as a group or individually
Reed contact
- Magnetic switch integrated into the frame profile for a contactless switching operation
- Signalling of opening position (closed / opened) of the daylight element
- Possible to connect to alarm system
Technical details
Glass Skylight FE: Aluminium profile
Design details
Thermo active design
A patented structural ribbing uses the heat energy of the room air below the base for the glazing. This increases the surface temperature in the aluminium frame.
The result: A flawless isothermal line and minimised risk of condensation.

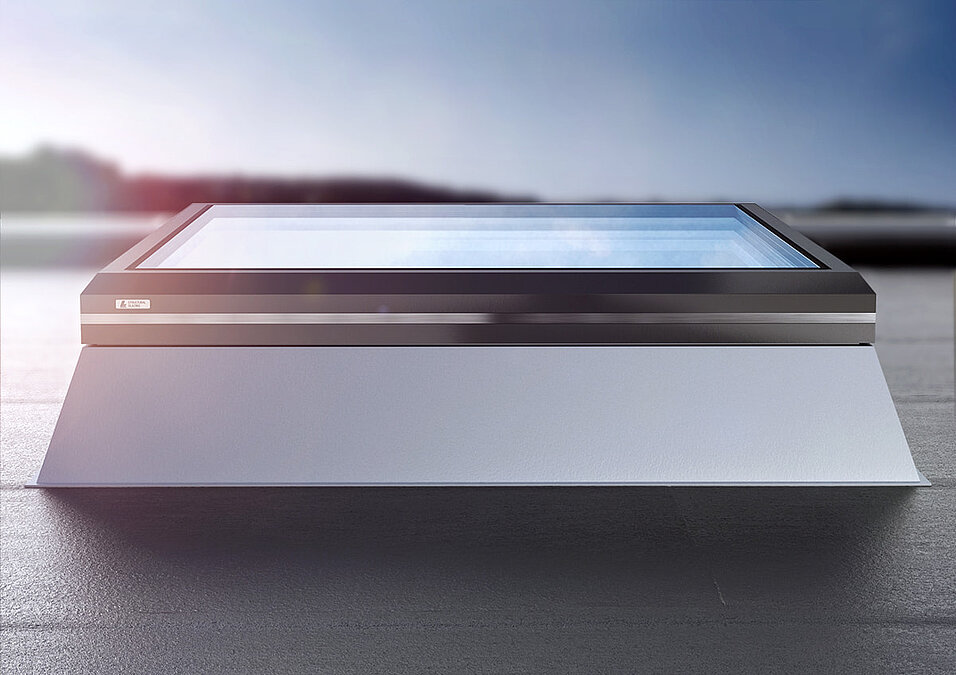

GRP upstand
Stability and heat insulation in many models
The upstand forms the base for the construction. It provides the ideal thermal connection to the building structure. Manufactured by LAMILUX, using fibre-reinforced composite, our upstands are CFC-free, solid white in colour and thermally insulated with polyurethane hard foam. They include weatherproof sealing and are classified as combustible material with no flaming droplets. LAMILUX upstands have a closed box section, which makes them very stable and warp-resistant. Different metal inserts can directly be laminated into the structure. Secure anchorage for fittings and personal protective equipment (PPE) is guaranteed.
LAMILUX upstands can be manufactured in an extremely large number of variants with regard to height and inclination angle. They also offer many options for customised roof connections. Example: Thermal insulated base flange – variable insulation thicknesses also available on request.

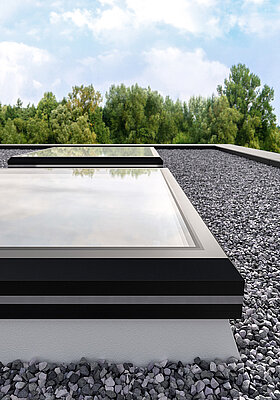

DIN 18234 – Prevention of fire spread on flat roofs
The GRP upstand and the aluminium surrounding frame profile render further safety measures unnecessary on flat roofs. Surface protection in the form of gravel fill is not required.
Downloads
Glass Skylight FE: Aluminium Profile
LAMILUX Glass Skylight F100 | FE | FE Passivhaus

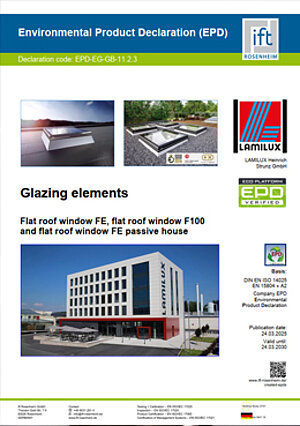

Environmental Product Declaration
